2021 New LED Lighting Multi Color Neon Flexible RGB LED Tape Light Strip
Long Life LED Strip Light RGB DC12V SMD5050 Flexible LED Strip LightFeatures1. Rolled cooper FPC, better thermal dissipation & bend-ability2. 20WAG or above cables3. Each 3 LED per unit with a couple of soldering pads for secondary operation4. Enhanced 0.2w 3V 5050 LED especially for strip produ......
Send Inquiry
Product Description

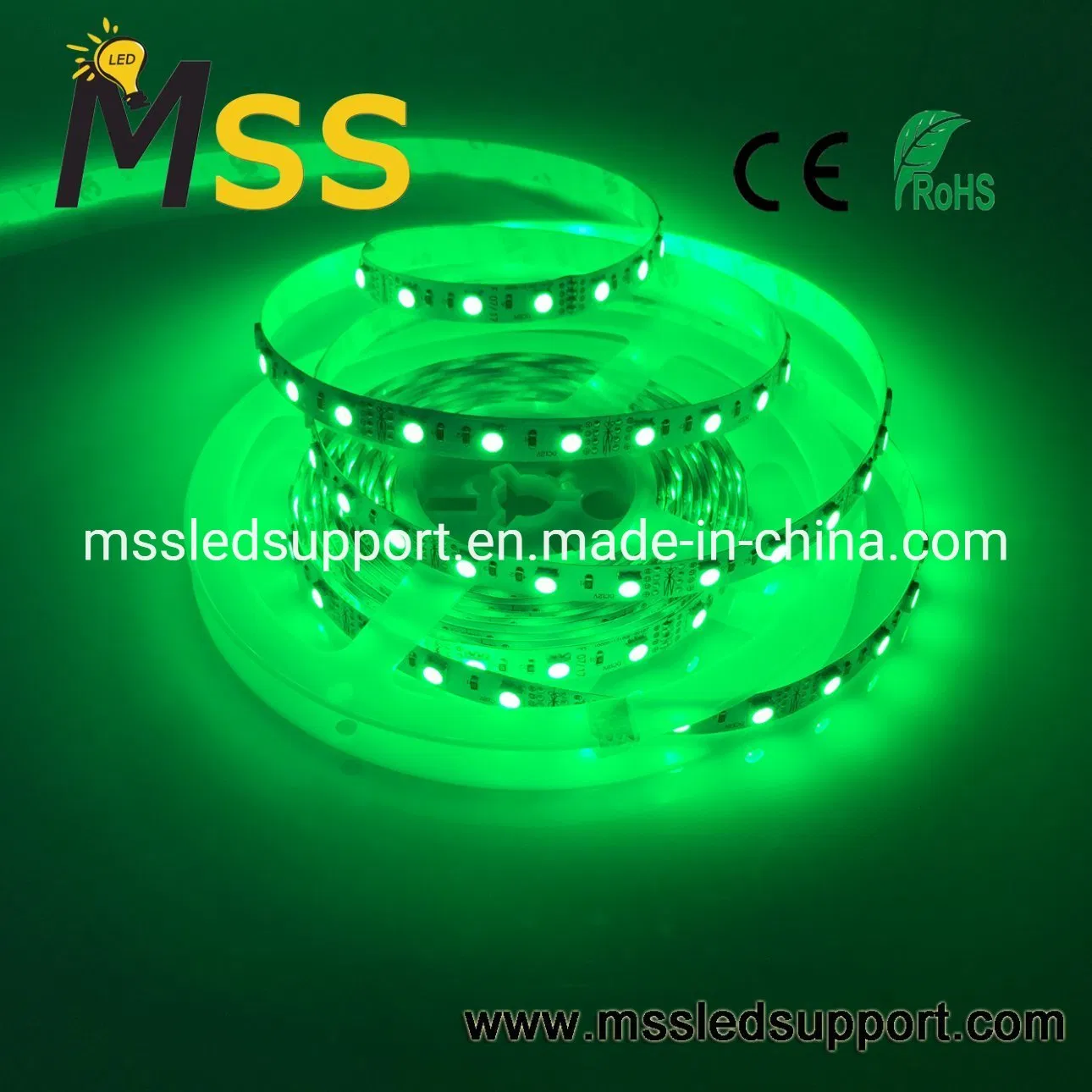

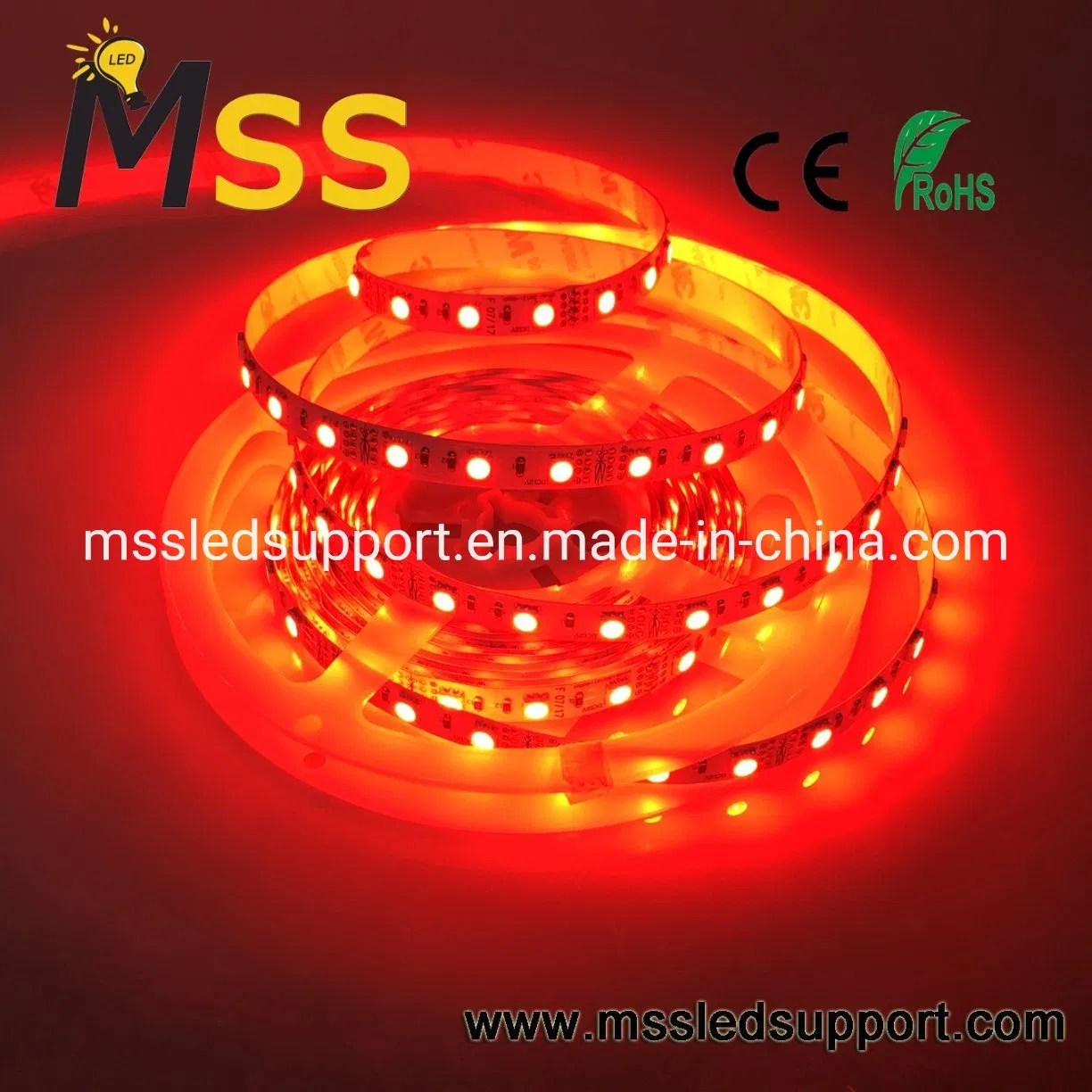

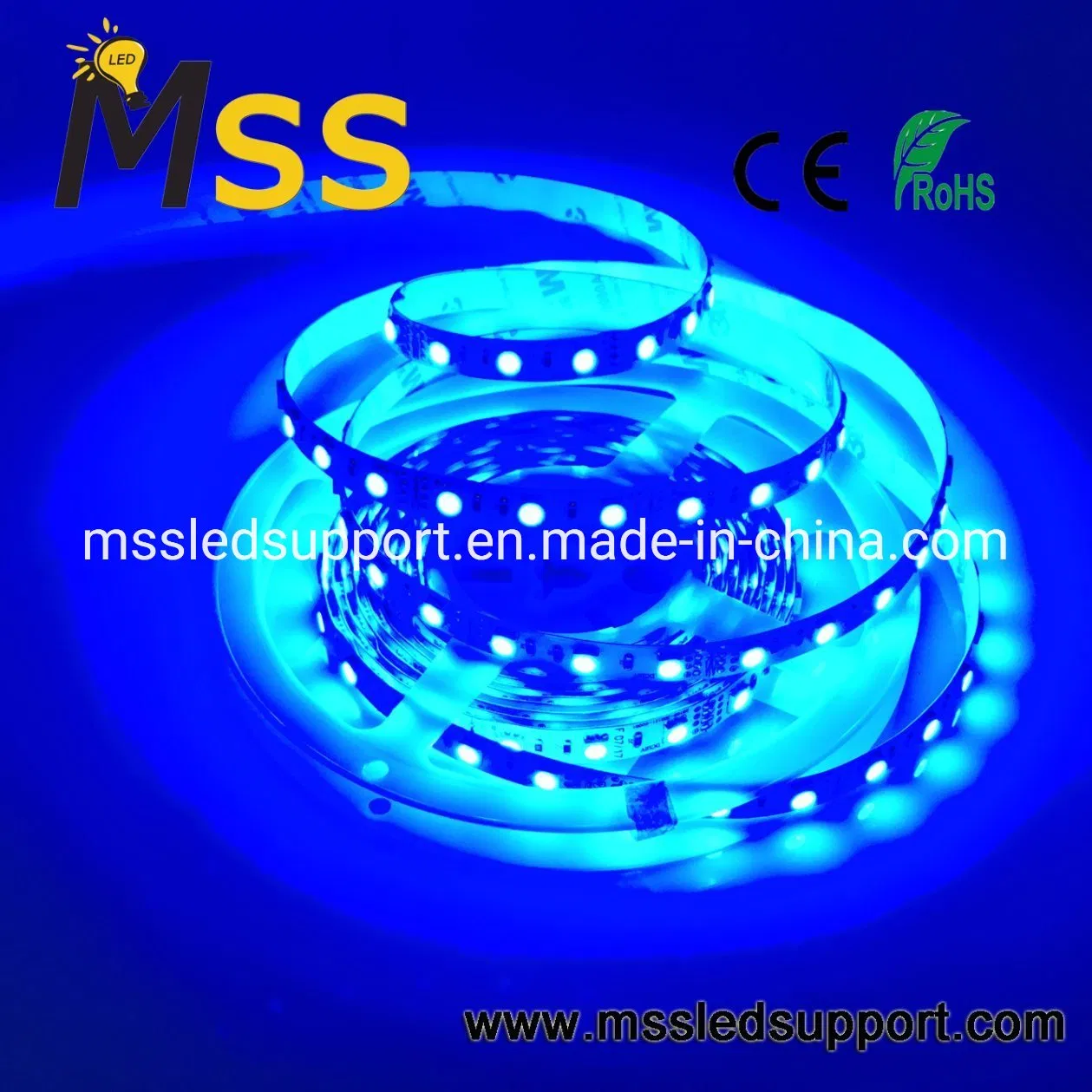

Long Life LED Strip Light RGB DC12V SMD5050 Flexible LED Strip Light
Features
1. Rolled cooper FPC, better thermal dissipation & bend-ability
2. 20WAG or above cables
3. Each 3 LED per unit with a couple of soldering pads for secondary operation
4. Enhanced 0.2w 3V 5050 LED especially for strip products
5. per meter 60pcs led
Dimensions
Environmental and Application Conditions
Electrical parameters
Optical parameters
Attention
1. Max. Length of strip is 5meters from power supplier to single end.
2. The LED strip itself and all its components may not be mechanical stressed.
3. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
4. The design of the housing should be according to the IP standards in the application.
5. If surge protection structure not within power supplier, a lightening protector should be needed additionally.
Package
Outal carton:45x25x25.6cm, Anti-static bag:186x197x0.12mm.
5 meters per reel, 1 reel per bag, 60 bags per boxes.
Certificate

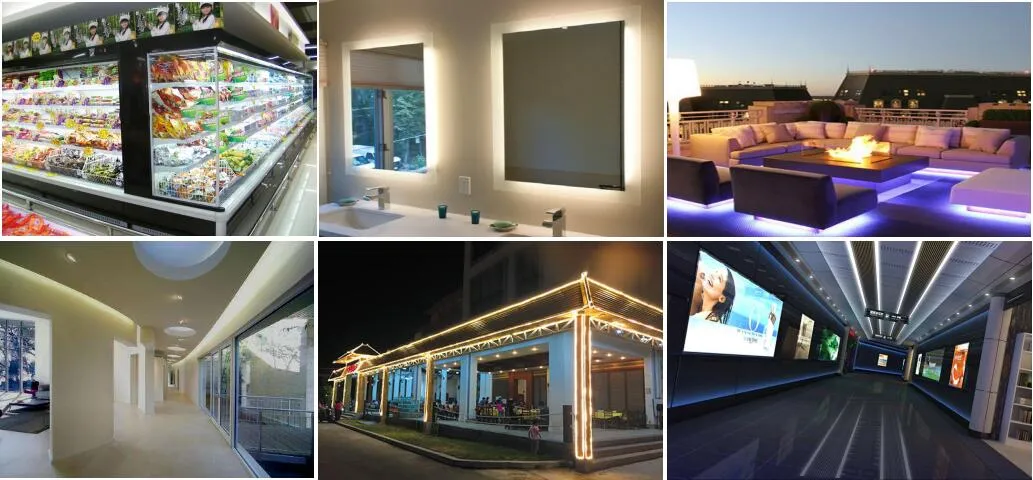

Applications
1. Curve lighting
2. Freeze lighting
3. Light bar light source
4. Special sign

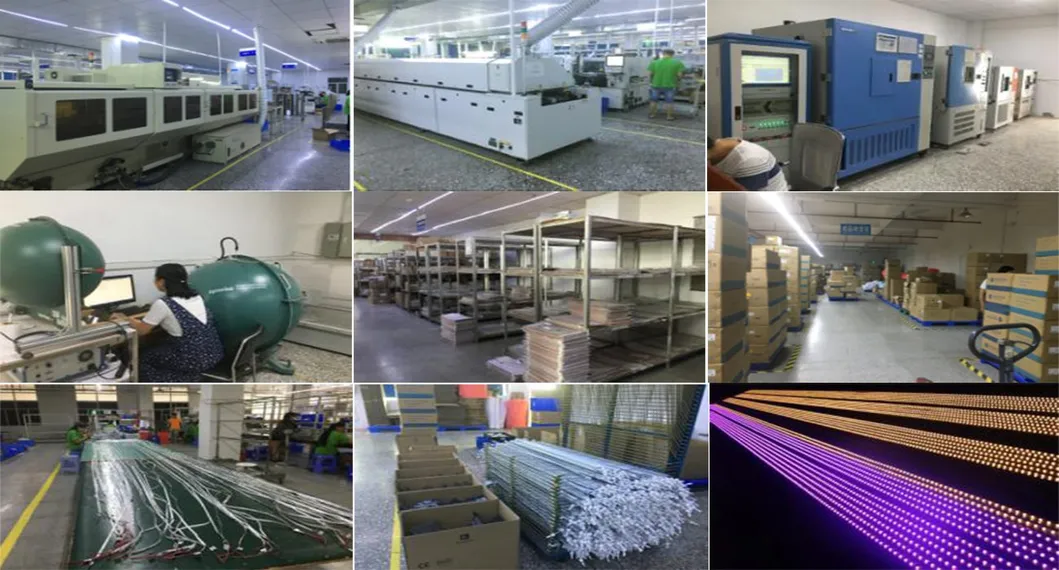

Company Profile
MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products, and accessory led power supplies, dimmer, controllers etc.
Except standard strip lights and modules, we can offer the custom made product as exact demand, eg. Different length, one-to-one connector, indicated color temperature/color rendering/lumens/watts; or some clients told us where use lights, or what project/object they plan to install lights, then our expert team will offer suitable solution;
Features
1. Rolled cooper FPC, better thermal dissipation & bend-ability
2. 20WAG or above cables
3. Each 3 LED per unit with a couple of soldering pads for secondary operation
4. Enhanced 0.2w 3V 5050 LED especially for strip products
5. per meter 60pcs led
Dimensions
Environmental and Application Conditions
| Ambient temperature range (TA on free air) | -25…..+50ºC |
| Operating (case) temperature range (TC) | -25…..+50ºC |
| Storage temperature range | -25…..+60ºC |
| IP rating | IP33 |
Electrical parameters
| Supply voltage range | 12.5±0.5 VDC |
| Supply Current range (per meter) | Max:1200mA |
| Power range (per meter) | Max:14.4 W |
| ESD protection | Contact 4KV, Air 8KV |
Optical parameters
| Part No. | Color Range | Flux per meter | |||
| Min. CCT or wavelength | Typ. CCT or wavelength | Max. CCT or wavelength | Min. Lumen | Typ. Lumen | |
| F300-5050RGB-R | 620nm | 625nm | 630nm | 120LM | 150LM |
| F300-5050RGB-G | 520nm | 525nm | 530nm | 400LM | 480LM |
| F300-5050RGB-B | 460nm | 465nm | 470nm | 70LM | 90LM |
Attention
1. Max. Length of strip is 5meters from power supplier to single end.
2. The LED strip itself and all its components may not be mechanical stressed.
3. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
4. The design of the housing should be according to the IP standards in the application.
5. If surge protection structure not within power supplier, a lightening protector should be needed additionally.
Package
Outal carton:45x25x25.6cm, Anti-static bag:186x197x0.12mm.
5 meters per reel, 1 reel per bag, 60 bags per boxes.
Certificate
Applications
1. Curve lighting
2. Freeze lighting
3. Light bar light source
4. Special sign
Company Profile
MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products, and accessory led power supplies, dimmer, controllers etc.
Except standard strip lights and modules, we can offer the custom made product as exact demand, eg. Different length, one-to-one connector, indicated color temperature/color rendering/lumens/watts; or some clients told us where use lights, or what project/object they plan to install lights, then our expert team will offer suitable solution;
