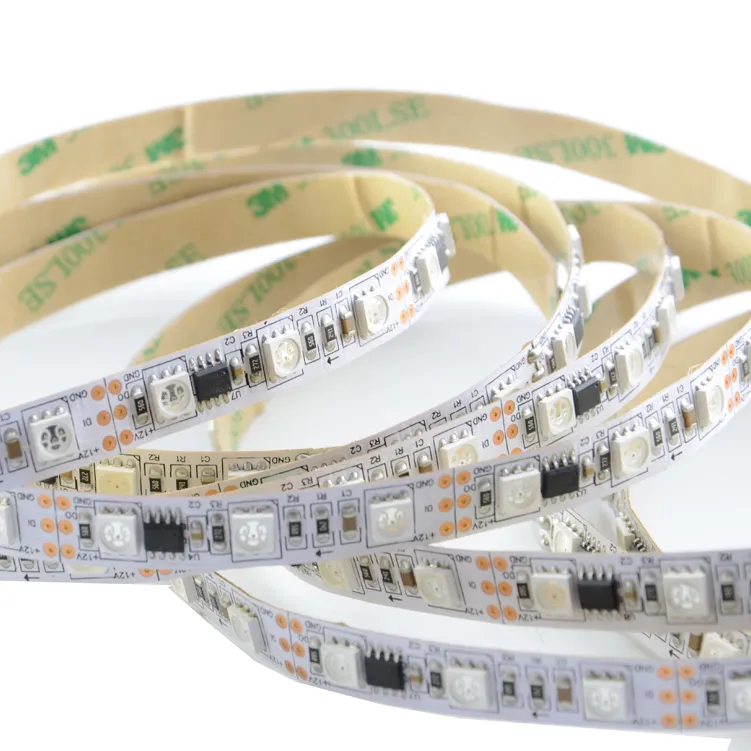

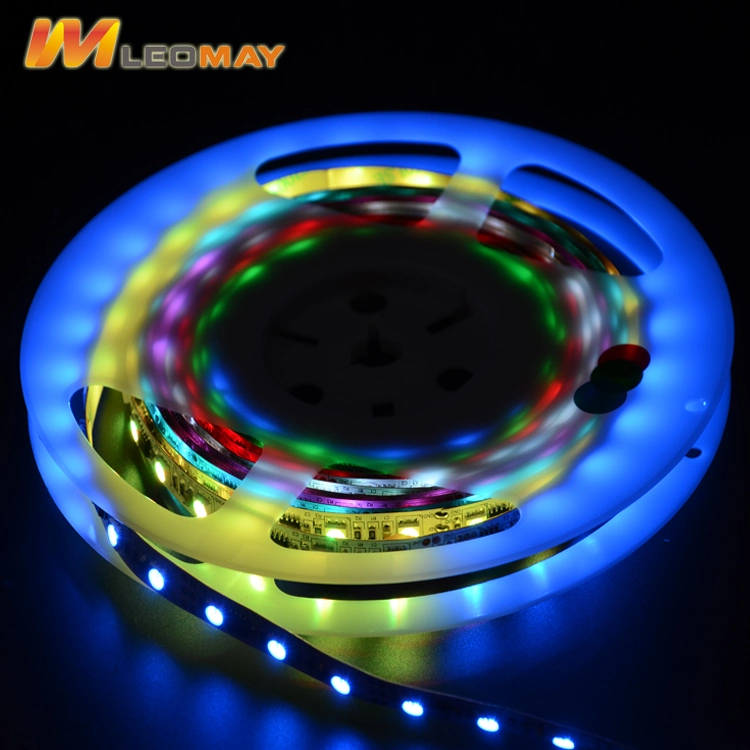

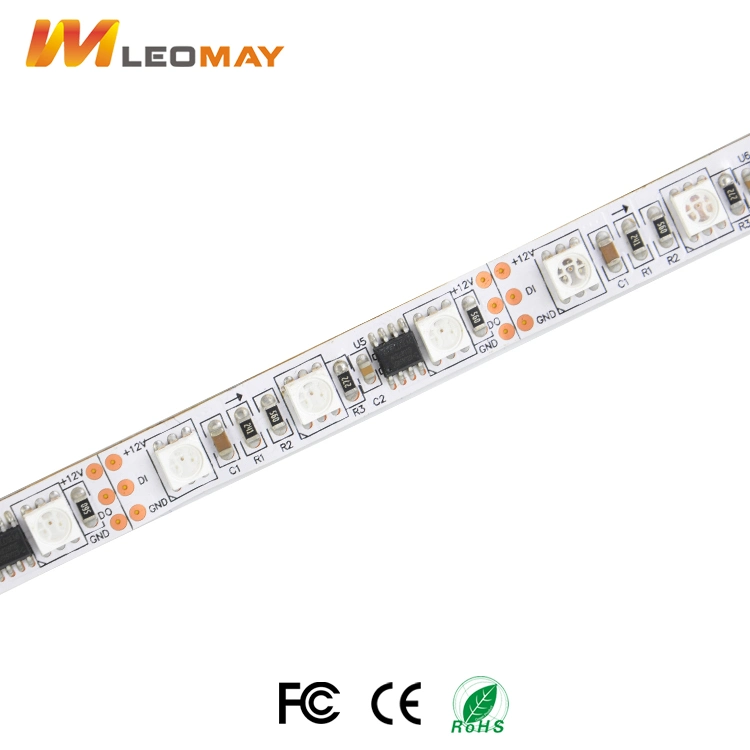

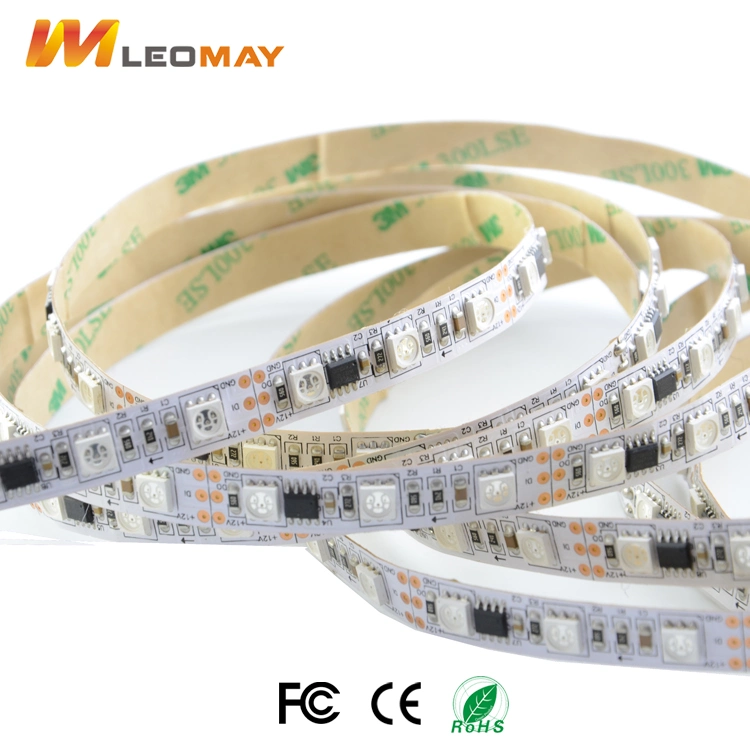

Changing Color LED light SMD5050 60LED/m Magic LED with the cetifications of CE RoHS And FCC etc.
Changing Color LED light SMD5050 60led/m Magic LED with the cetifications of CE RoHS And FCC etc. Product Specification:Model NOLM5050-WN60-1903-12V-10MMProduct NameSMD5050 60LEDS/M MagicLED stripsPCB Width10MMLED Qty/m60leds/m 5050PCB Materials2Oz Double-sided coated pure copper(can print your log......
Send Inquiry
Product Description
Product Specification:
Model NO | LM5050-WN60-1903-12V-10MM |
Product Name | SMD5050 60LEDS/M MagicLED strips |
PCB Width | 10MM |
LED Qty/m | 60leds/m 5050 |
PCB Materials | 2Oz Double-sided coated pure copper(can print your logo on PCB) |
Voltage(V) | 12V DC |
Rated Power(W) | 14.4W/M,72W/5M |
Luminous(lm/m) | / |
LED Chip Brand | Sanan(Epistar optional) |
LEDs material | packaged by 99.99% pure gold wire |
LED BINs | 3-Step/5-Step, same BIN for each order |
LEDs Supplier | Honglitronic (Osram/Samsung optional) |
CRI(RA>) | CRI80(CRI 90 optional) |
Color | RGBY |
Color Tempertature | 2200K,2700K,3000K,3500K,4000K,6000K,7000K |
IP Rate | IP20 (IP54/IP67/IP68 optional) |
View Angle | 120 |
Product Size(mm) | 10*5000mm |
Package(m/rol) | 5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |
Working Temperature(ºC) | -20-60 |
Cutting Unit | 3 LEDs |
Adhesive Tape | 9495 3000LSE 3M tape |
Dimmable | Yes |
Certificate | UL,CE,Rohs,FCC. |
Warranty | 3 Years |
Product Features:
1, No UV/IR radiation and light source long life-span(>5000 hours).
2, Energy saving and environmental conservation,ECO-friendly,NO mercury
3, Superior color rendering.CRI>80,90,96
4. The color and width of PCB board could be choosed.
5. PCB thickness can be 2oz, 3oz.
6. The voltage can be 5-24V or your requirement.Low voltage ,safety,stability.
7. The LED quantity can be choosed, from 30leds/m to 480leds/m.
8, From IP20 to IP68 styles are all available, Suit for both indoor lighting and outdoor projects.
9, Reliable SMD Source, super brightness, high CRI,low decay.
10,Easy installation using 3M tape or plastic clip to fix it
11,Strips Can be bent,can be cuttable,can be arbitrarily fixed in the concave surface.
12,Print your logo on the PCB, and do customized packages are acceptable.
Our advantages:
1, UL,FCC,CE,RoHS,CCC,ISO certificates.
2, OEM or ODM is acceptable.
3, Strict quality control.
4,Fast delivery and good service,Email or inquiry will be replied in 2hours.(weekends or holidays within 12hours),and also good after-sale services.
5, Our main markets are European and North American,so high quality only.
6, Supply the full led strip products (with strip accessory ) to make you more easy with LED Business.
7,We can support complete cut/connection accessories, such as: aluminum profiles,led power supply, Meanwell power supply.Mi.light controller,connectors, etc.
Payment Terms:
T/T(Bank Transfer),Paypal,Western union,Money Garm,Credit Card,Master Card.
MOQ:
For standard products, no MOQ, 1M is also acceptable.

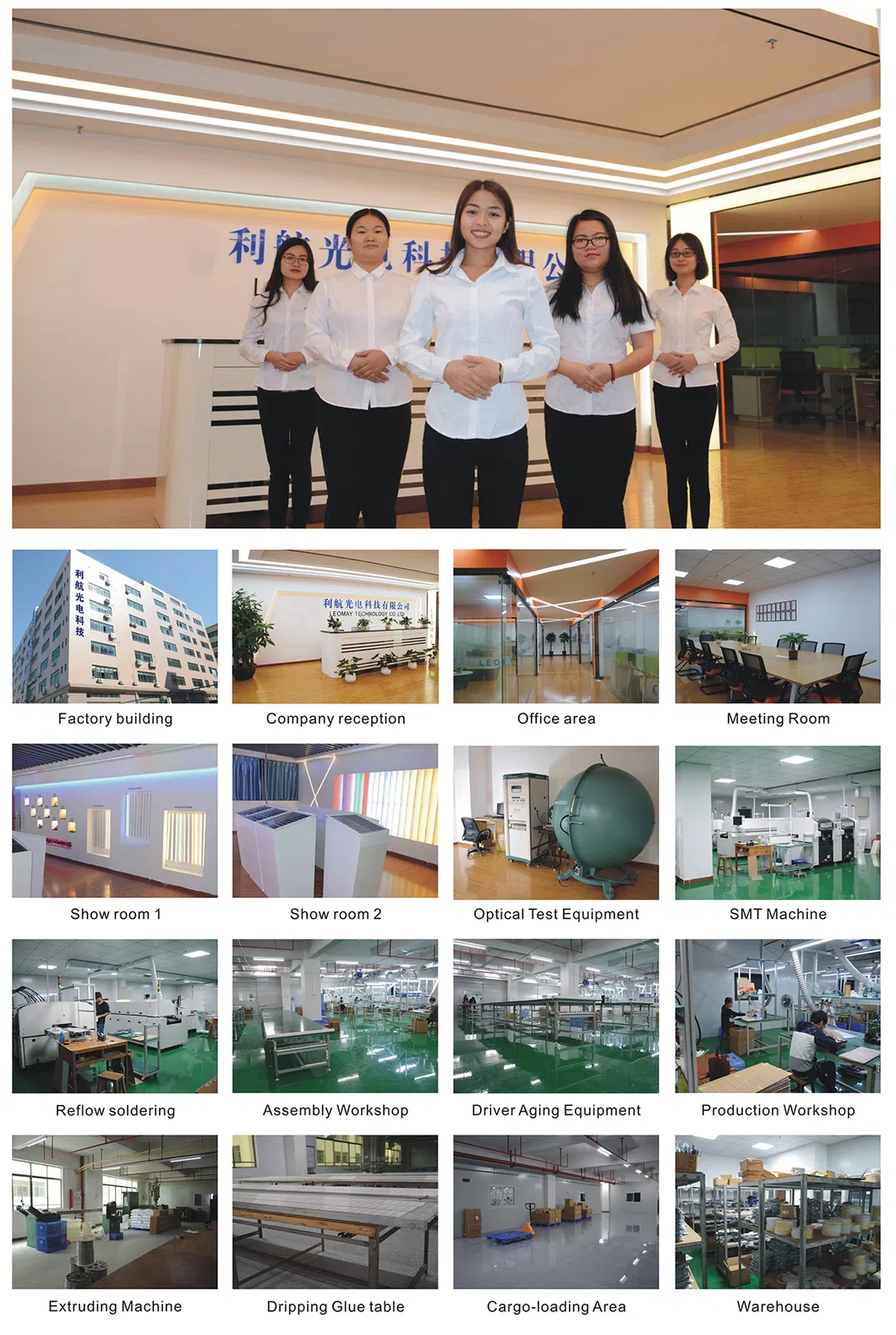

Company Information
Trade Shows

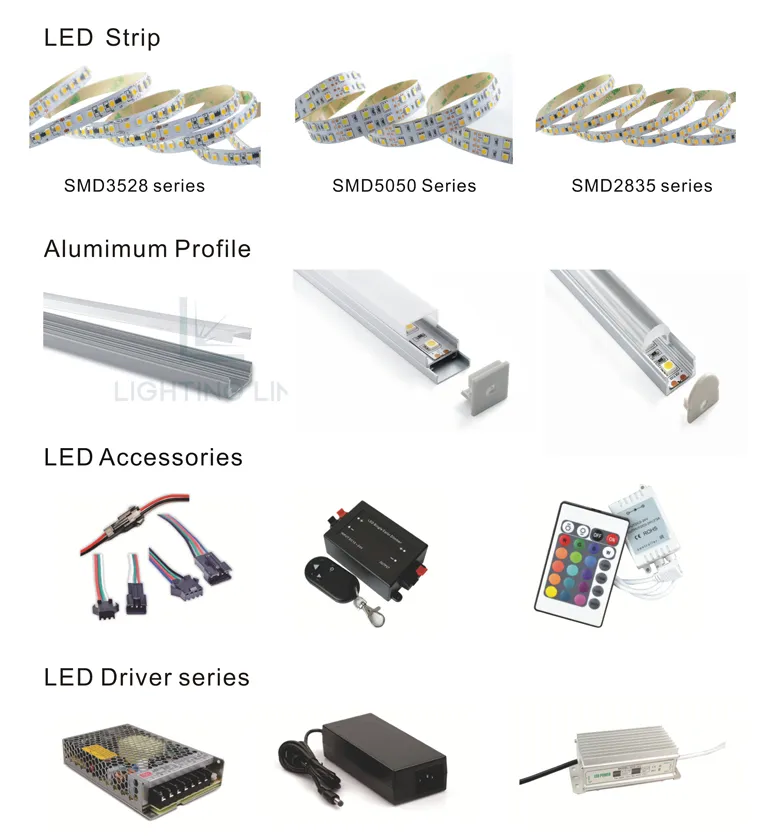

Catalog&Accessories
Packing & Delivery

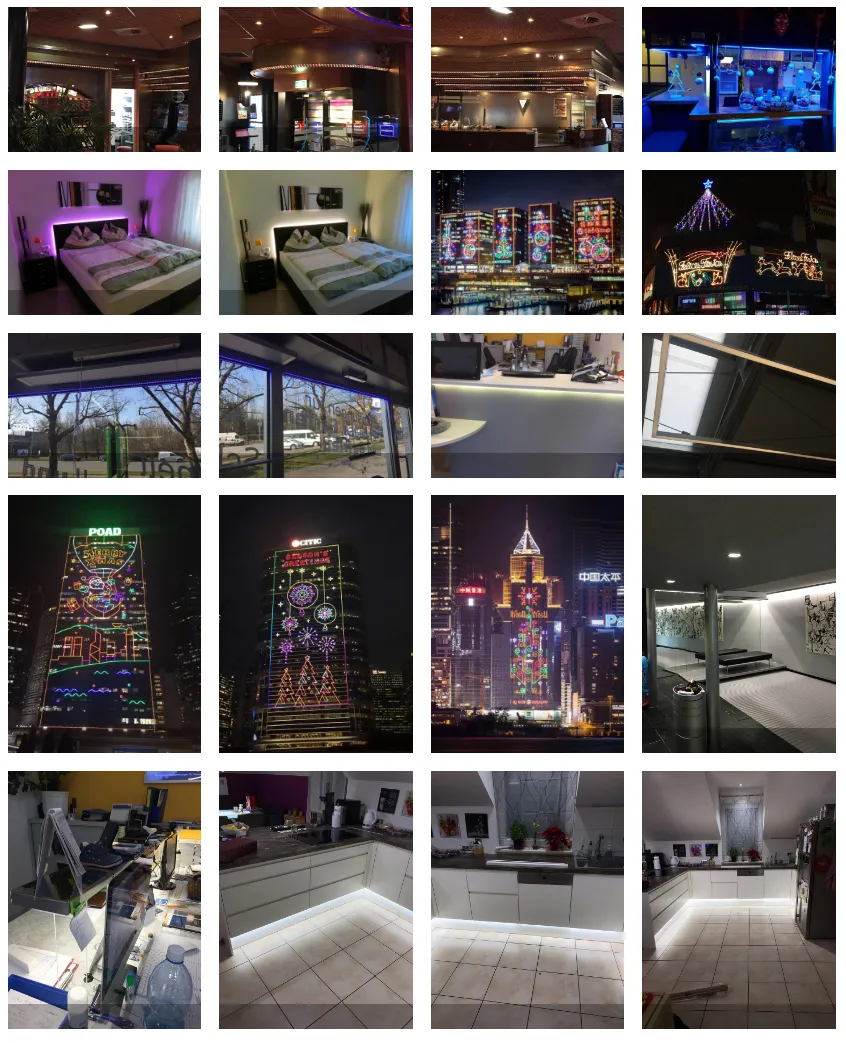

customers Installation
FAQ
1) What are the best selling products in Leomay?
- LED Strip
- Aluminum LED Profiles
- Controllers&Remote
- Power Supply
- Connector
2) What is the main market for Leomay?
We are selling more to EU and North America because the markets have high quality standard for LED products. The rate stands our turnover up to 70-80%. But other new markets are increasing demand of the new Leomay LED technology. We are also optimistic about the markets for other American and Asian regions.
3) What is Leomay lead time for LED Strip?
Usually we ship orders in 7-15 Days. But it will take a little longer if with heavy burden of production task. It also takes more time with customized products.
4) Can Leomay do custom assembly or offer OEM product?
Leomay has gained a lot of experience on OEM assembly of LED strip lighting. The LED strips can have different size, layout, customer logos and labels. We will strictly follow the principal that we won't disclose or sell customer unique designs or jointly developed products to another third party.
5) Do you have warranty for products?
Yes, we have 2 and 3 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Leomay engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.
6) How to buy Leomay products?
In most case we sell directly to customers worldwide, also we have already set up Alibaba Chanels,you can directly click "Contact Us" in the below to email us or make a call.We will respond with quick service maximum within 12 hours.
