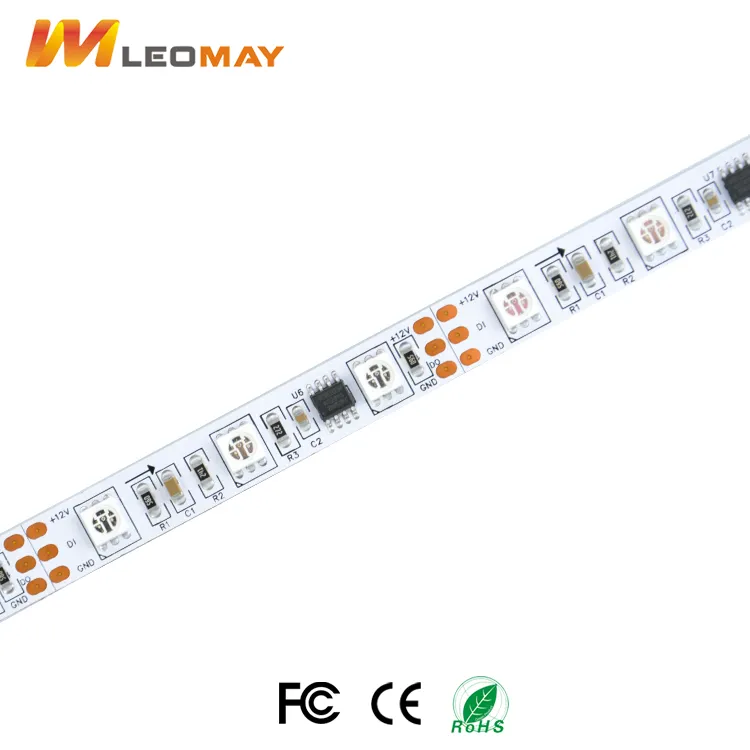

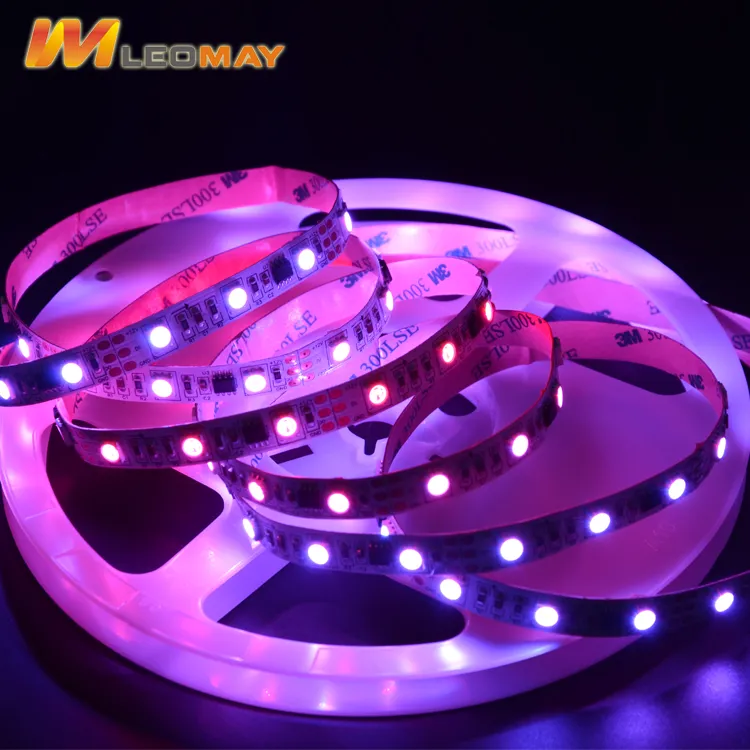

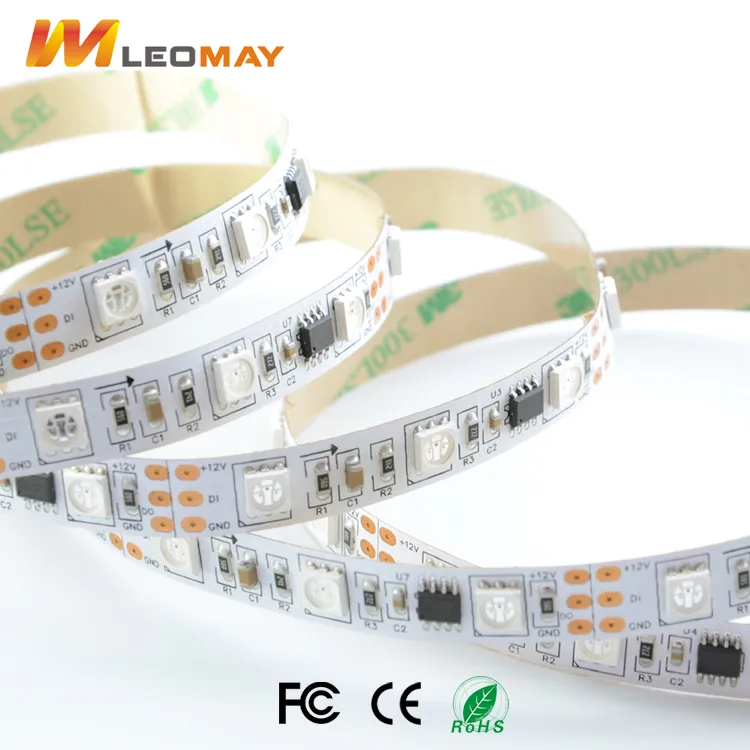

CO-friendly safety 5050 48LEDs, RGB, 1903 , DC12V magic LED strip
Product Description:Best prices flexible 5050,48leds,DC12V, 10MM,magic ledstrip lightProduct Specification:Model NOLM5050-WN48-1903-12V-10MMProduct NameSMD5050 48LEDS/M MagicLED stripsPCB Width10MMLED Qty/m48leds/m 5050PCB Materials2Oz Double-sided coated pure copper(can print your logo on PCB)Volta......
Send Inquiry
Product Description
Product Description:Best prices flexible 5050,48leds,DC12V, 10MM,magic ledstrip light
Product Specification:
Model NO | LM5050-WN48-1903-12V-10MM |
Product Name | SMD5050 48LEDS/M MagicLED strips |
PCB Width | 10MM |
LED Qty/m | 48leds/m 5050 |

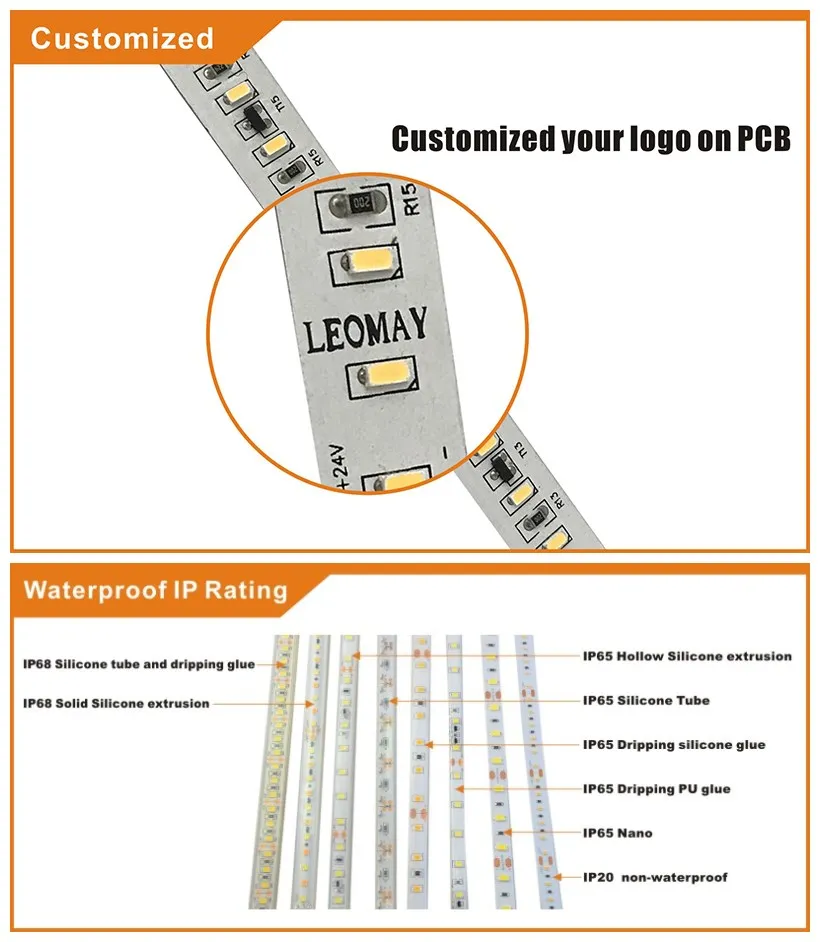

PCB Materials | 2Oz Double-sided coated pure copper(can print your logo on PCB) |
Voltage(V) | 12V DC |
Rated Power(W) | 11.5W/M,57.5W/5M |
Luminous(lm/m) | / |
LED Chip Brand | Sanan(Epistar optional) |
LEDs material | packaged by 99.99% pure gold wire |
LED BINs | 3-Step/5-Step, same BIN for each order |
LEDs Supplier | Honglitronic (Osram/Samsung optional) |
CRI(RA>) | CRI80(CRI 90 optional) |
Color | RGBY |
Color Tempertature | 2200K,2700K,3000K,3500K,4000K,6000K,7000K |
IP Rate | IP20 (IP54/IP67/IP68 optional) |
View Angle | 120 |
Product Size(mm) | 10*5000mm |
Package(m/rol) | 5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |
Working Temperature(ºC) | -20-60 |
Cutting Unit | 3 LEDs |
Adhesive Tape | 9495 3000LSE 3M tape |
Dimmable | Yes |
Certificate | UL,CE,Rohs,FCC. |
Warranty | 3 Years |
Product Features:
a. CE,RoHs,UL,FCC certificate
b. Reliable SMD Source, Epistar. SMD 2835, super brightness, high CRI, ideal for restraurant and supermarket, make everything looks more real.
c. Operating low voltage (DC12V, DC24V) for human safety.
d. Energy saving and environmental conservation, long lifespan.
Product Applications:
a. Indoor and outdoor decoration lightings.
b. Large scale backlight.
d. Window display lighting.
e. Building contour decorative lighting.
f. Ad. Signs, light boxes.
g. Landscape outlines.
h. Car and motorcycle decorative lighting.
i. Bridge edge lighting.
j. Architectural decorative lighting.
k. Emergency hallway lighting.
l. Festival lighting, like Christmas.
| Model | LED QTY | Volt | Power | Lumen/m | CRI | PCB Width | IP Rate | Color |
| LM2835-WN60-S | 60leds/m | 12V | 12w/m | 1440lm/m | 80-95 | 6mm | IP33/65/67/68 | W/WW/R/Y/G/B |
| LM2835-WN60 | 60leds/m | 12V/24V | 12w/m | 1440lm/m | 80-95 | 8/10mm | IP33/65/67/68 | W/WW/R/Y/G/B |
| LM2835-WN120 | 120leds/m | 12V/24V | 24w/m | 2880lm/m | 80-95 | 8/10mm | IP33/65/67/68 | W/WW/R/Y/G/B |
| LM2835-WN180 | 180leds/m | 12V | 36w/m | 4320lm/m | 80-95 | 8mm | IP33/65/67/68 | W/WW/R/Y/G/B |
| LM2835-WN240-24V-Single Row | 240leds/m | 24V | 48w/m | 5660lm/m | 80-95 | 10/12mm | IP33/65/67/68 | W/WW/R/Y/G/B |
| LM2835-WN240-12V-Double Row | 240leds/m | 12V | 48w/m | 5660lm/m | 80-95 | 16mm | IP33/65/67/68 | W/WW/R/Y/G/B |
| SMD2835 5mm PCB Width LED Strip | ||||||||
| LM2835-WN120-5MM | 120leds/m | 12V/24V | 24w/m | 2880lm/m | 80-95 | 5mm | IP33/65/67/68 | W/WW/R/Y/G/B |
| SMD2835 Constant Current LED Strip | ||||||||
| LM2835-WN30-HL | 30leds/m | 12V | 6w/m | 720lm/m | 80-95 | 10mm | IP33/65/67/68 | W/WW/R/Y/G/B |
| LM2835-WN36-HL | 36leds/m | 24V | 7.2w/m | 864lm/m | 80-95 | 10mm | IP33/65/67/68 | W/WW/R/Y/G/B |
| LM2835-WN60-HL | 60leds/m | 24V | 12w/m | 1440lm/m | 80-95 | 10mm | IP33/65/67/68 | W/WW/R/Y/G/B |
| LM2835-WN120-HL | 120leds/m | 24V | 24w/m | 2880lm/m | 80-95 | 10mm | IP33/65/67/68 | W/WW/R/Y/G/B |
| SMD2835 Adjustable LED Strip | ||||||||
| LM2835-WN120-CCT | 120leds/m | 24V | 24w/m | 2880lm/m | 80-95 | 10mm | IP33/65/67/68 | W/WW/R/Y/G/B |
