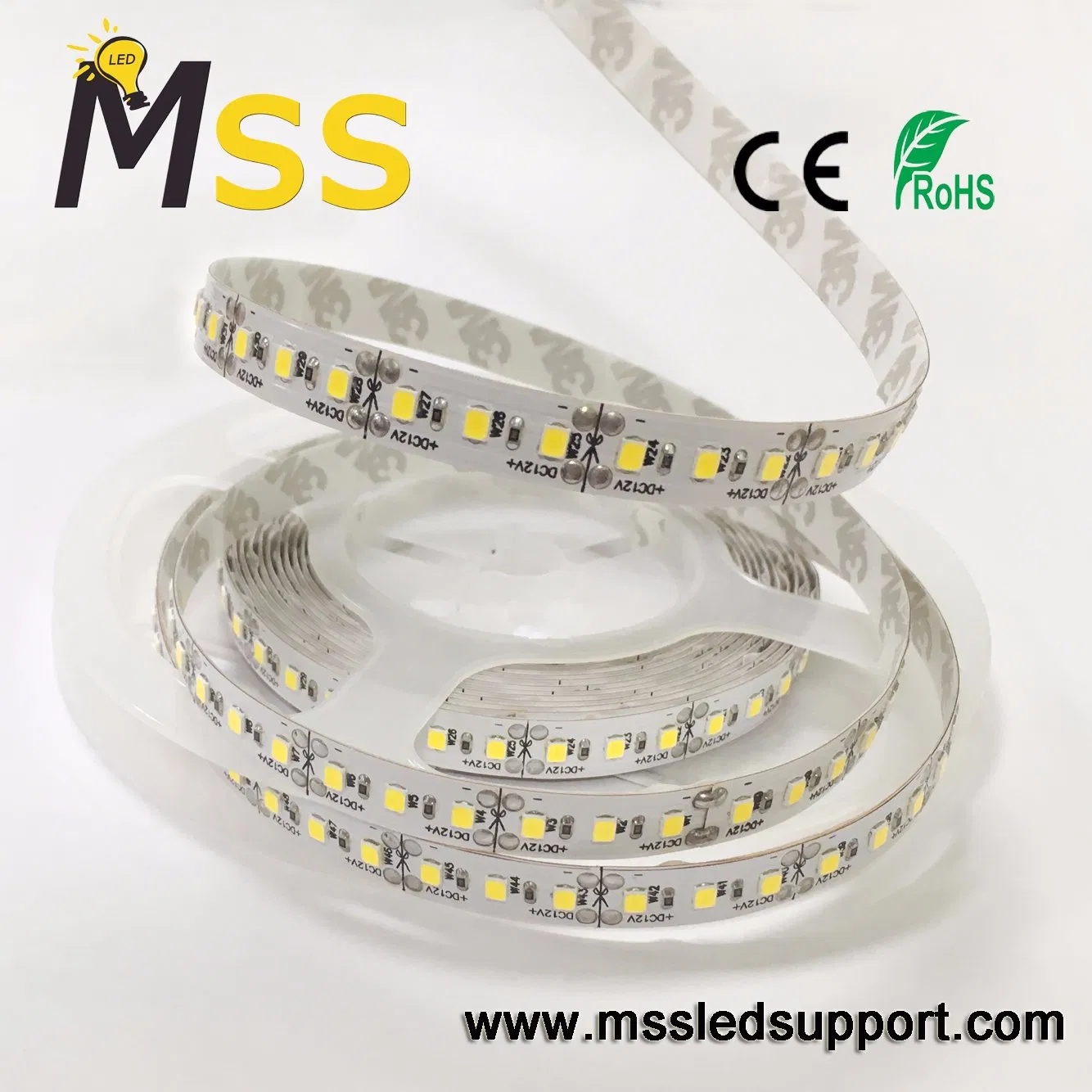

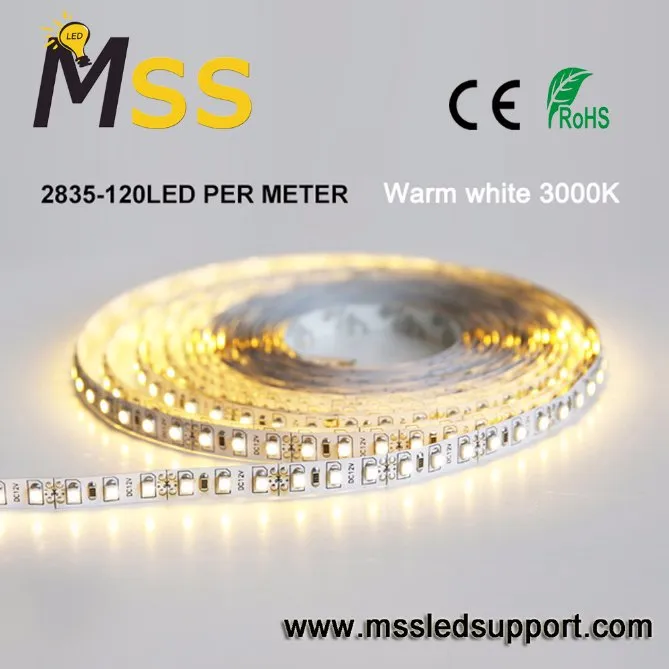

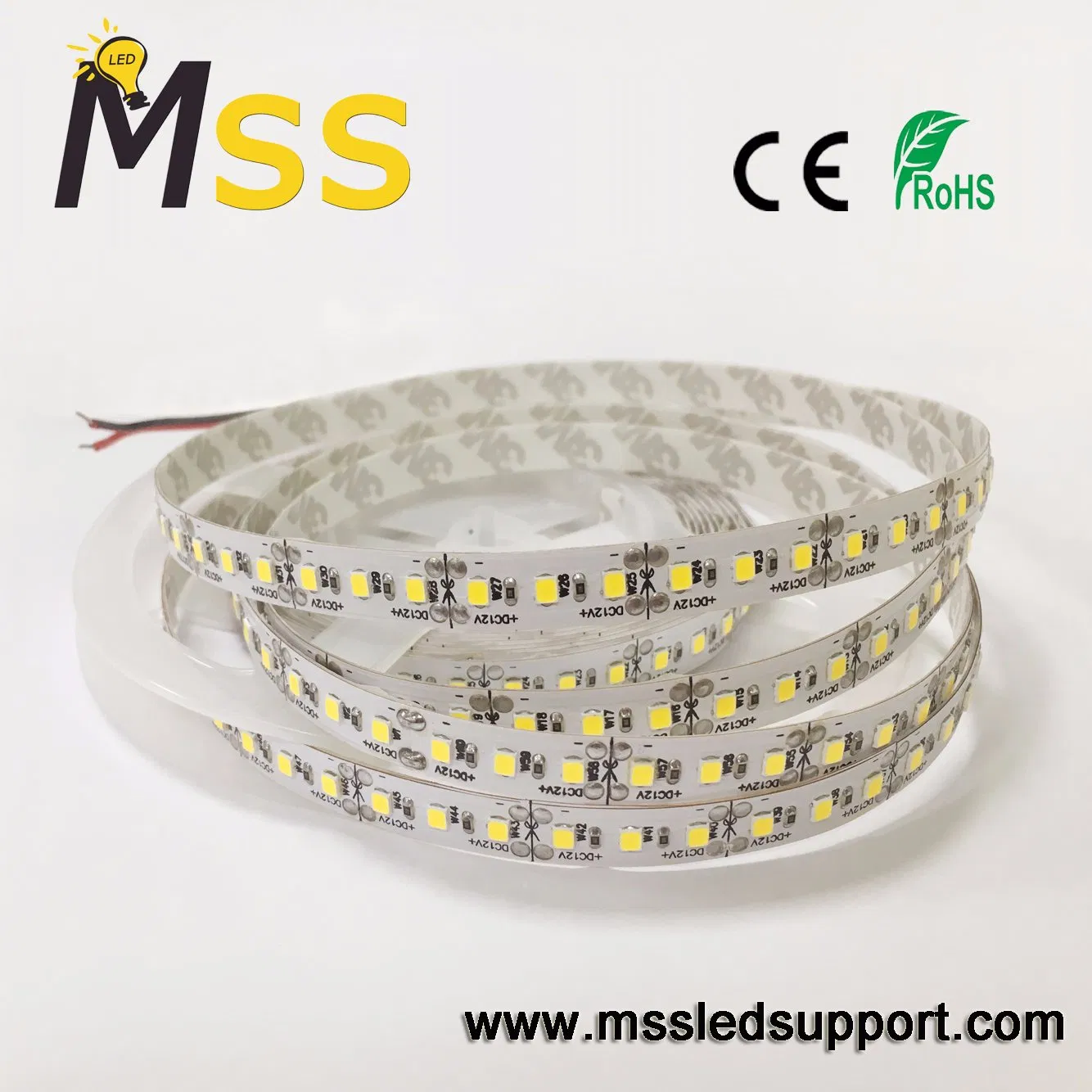

High Performance High CRI90 120 SMD LEDs Strip 2835
CE RoHS 3Years Guarantee 120LED/M SMD 2835 LED Strip LightFeatures 1. Rolled cooper FPC, better thermal dissipation & bend-ability2. 20WAG or above cables3. Each 3 LED per unit with a couple of soldering pads for secondary operation4. Enhanced 2835 LED especially for strip productsDimensionsEnvi......
Send Inquiry
Product Description
CE RoHS 3Years Guarantee 120LED/M SMD 2835 LED Strip Light
Features
Dimensions
Environmental and Application Conditions
Electrical parameters
1. Max. Length of strip is 5meters from power supplier to single end.Attention Package
Outal carton:45x25x25.6cm, Anti-static bag:186x197x0.12mm.
5 meters per reel, 1 reel per bag, 50 bags per boxes.
Features
1. Rolled cooper FPC, better thermal dissipation & bend-ability
2. 20WAG or above cables
3. Each 3 LED per unit with a couple of soldering pads for secondary operation
4. Enhanced 2835 LED especially for strip products
Dimensions
Environmental and Application Conditions
| Ambient temperature range (TA on free air) | -25…..+50ºC |
| Operating (case) temperature range (TC) | -25…..+50ºC |
| Storage temperature range | -25…..+60ºC |
| IP rating | IP33 |
Electrical parameters
| Supply voltage range | 12.5±0.5 VDC |
| Supply Current range (per meter) | 800mA |
| Power range (per meter) | 9.6 W |
| ESD protection | Contact 4KV, Air 8KV |
Optical parameters
Attention
| Part No. | Color Range | Flux per meter | |||
| Min. CCT or wavelength | Typ. CCT or wavelength | Max. CCT or wavelength | Min. Lumen | Typ. Lumen | |
| F600-2835W | 6000K | 7000K | 8000K | 760LM | 810LM |
| F600-2835C | 10000K | 16000K | 22000K | 760LM | 810LM |
| F600-2835M | 3000K | 3200K | 3400K | 760LM | 810LM |
| F600-2835R | 620nm | 625nm | 630nm | 204LM | 252LM |
| F600-2835Y | 588nm | 591nm | 594nm | 192LM | 240LM |
| F600-2835G | 520nm | 525nm | 530nm | 528LM | 660LM |
| F600-2835B | 460nm | 465nm | 470nm | 132LM | 168LM |
Attention
1. Max. Length of strip is 5meters from power supplier to single end.Attention
2. The LED strip itself and all its components may not be mechanical stressed.
3. Please ensure that the power supply is adequate power to operate the total load. Only qualified personnel should be allowed to perform installations.
4. The design of the housing should be according to the IP standards in the application.
5. If surge protection structure not within power supplier, a lightening protector should be needed additionally.
Outal carton:45x25x25.6cm, Anti-static bag:186x197x0.12mm.
5 meters per reel, 1 reel per bag, 50 bags per boxes.
Installation and description and attention

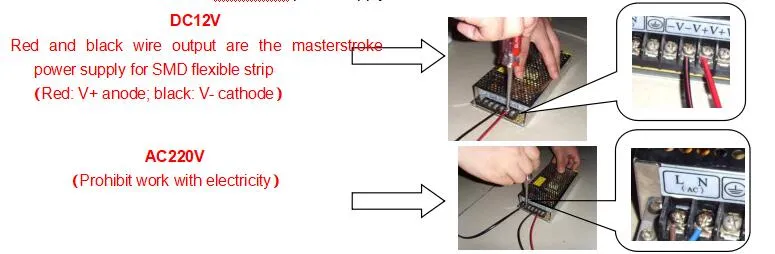

The diameter of red and black wire is according to the quantity of the strips, the distance between power supply and SMD flexible strip, power of strip and other factors. Commonly, the bigger longer distance, the bigger power and the more strips, and the larger of the diameter. Suggest to use RV( single line with several cores wire) wire as masterstroke, flexible and easy to connect. Please put extra masterstroke if single one support over 100W.
2. Fit the strips according to the actual situation.
1. Power supply should have necessary short circuit and over-voltage protection and other functions. No use un-isobaric power supply. And Insulated handle is needed.
The diameter of red and black wire is according to the quantity of the strips, the distance between power supply and SMD flexible strip, power of strip and other factors. Commonly, the bigger longer distance, the bigger power and the more strips, and the larger of the diameter. Suggest to use RV( single line with several cores wire) wire as masterstroke, flexible and easy to connect. Please put extra masterstroke if single one support over 100W.
2. Fit the strips according to the actual situation.

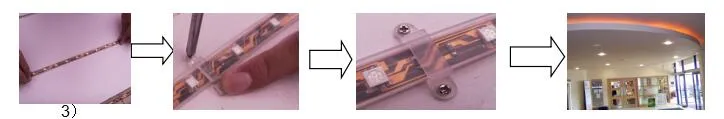

1) Spread the strip flatly where you want to equip
2) As per the following diagram, use transparent clips to fit strips. Every 4 pcs in a meter. Theclip should be equipped between LEDs, no press on LED.
3) Connect with masterstroke, every 5 mtrs in one main line according to the character of strips. Under with power supply on two ends, it can connect with 10 mtrs.
Applications
MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products, and accessory led power supplies, dimmer, controllers etc.

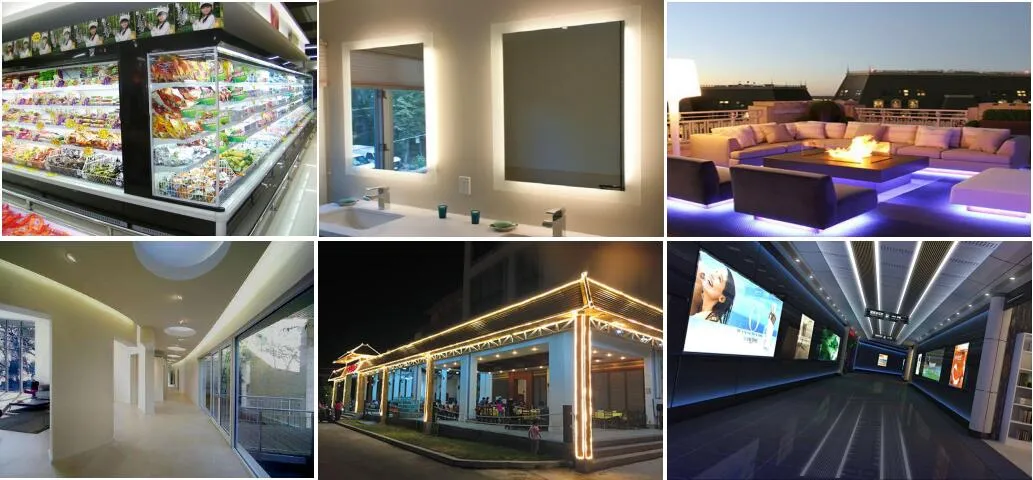

Applications
1. Curve lighting
2. Freeze lighting
3. Light bar light source
3. Special signCompany Profile :

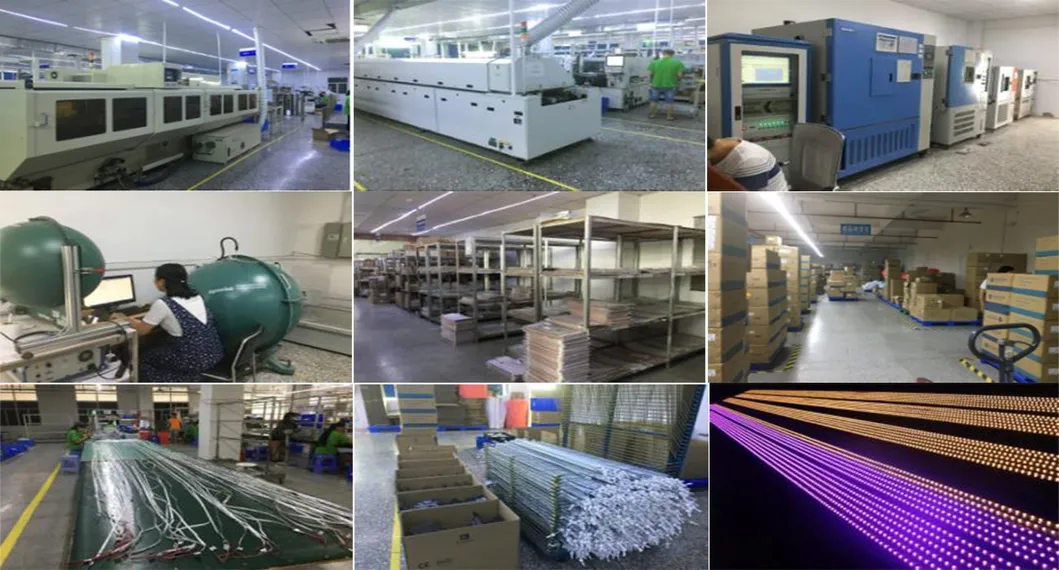

MSS LED was established in 2011 and our Core team members engaged in LED industry since 2007, nearly 10years experience we foucs on led strip lights, led sign modules, related advertisement lighting products, and accessory led power supplies, dimmer, controllers etc.
Except standard strip lights and modules, we can offer the custom made product as exact demand, eg. Different length, one-to-one connector, indicated color temperature/color rendering/lumens/watts; or some clients told us where use lights, or what project/object they plan to install lights, then our expert team will offer suitable solution;
