SMD2216 60LEDs 120LEDs 10W/M LED Light Strips with UL for 1616 Aluminum Profile
SMD2216 60LEDs 120LEDs 10W/M LED Light Strips with ULFeatures:1. Adopt top SMD2016.High brightness.2,Tick double layer 2 oz copper PCB for excellent thermal management(3-step Macadam).3,Single Bin led selection to ensure color consistence4. DC12V 24V low voltage, high security.5. Low power consumpti......
Send Inquiry
Product Description
SMD2216 60LEDs 120LEDs 10W/M LED Light Strips with UL
Features:
1. Adopt top SMD2016.High brightness.
2,Tick double layer 2 oz copper PCB for excellent thermal management(3-step Macadam).
3,Single Bin led selection to ensure color consistence
4. DC12V 24V low voltage, high security.
5. Low power consumption, long life, free maintenance
6. Cuttable length: every 3 leds cuttable for DC12V type,every 6 leds cuttable for DC24V type
7.3M adhesive tape easily for fixing
8. CE,RoHS Certificated
9. Life span: >50000hours
10.Small size led can achieve more leds per meter

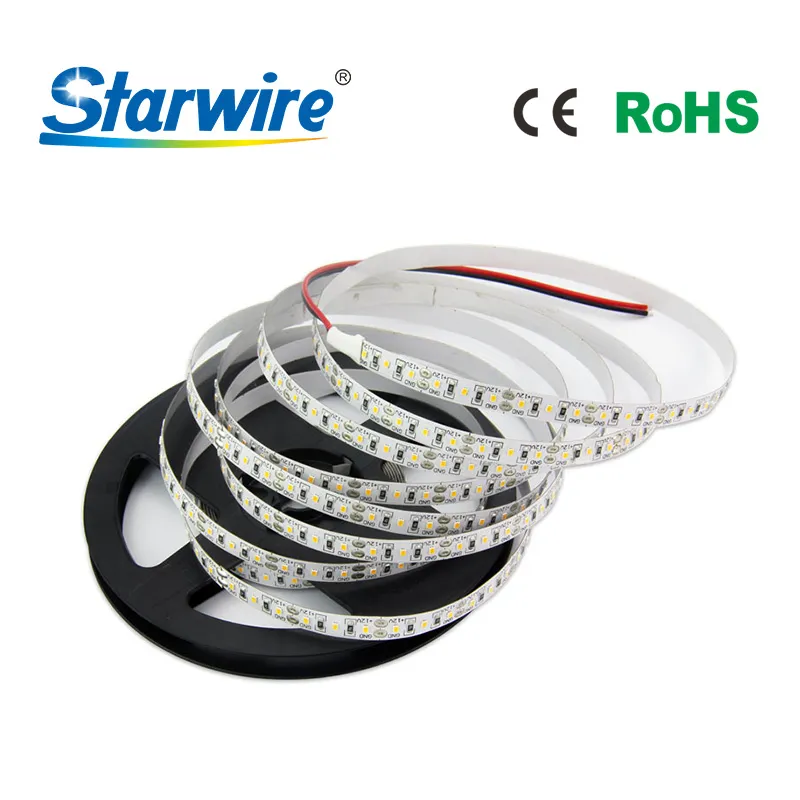

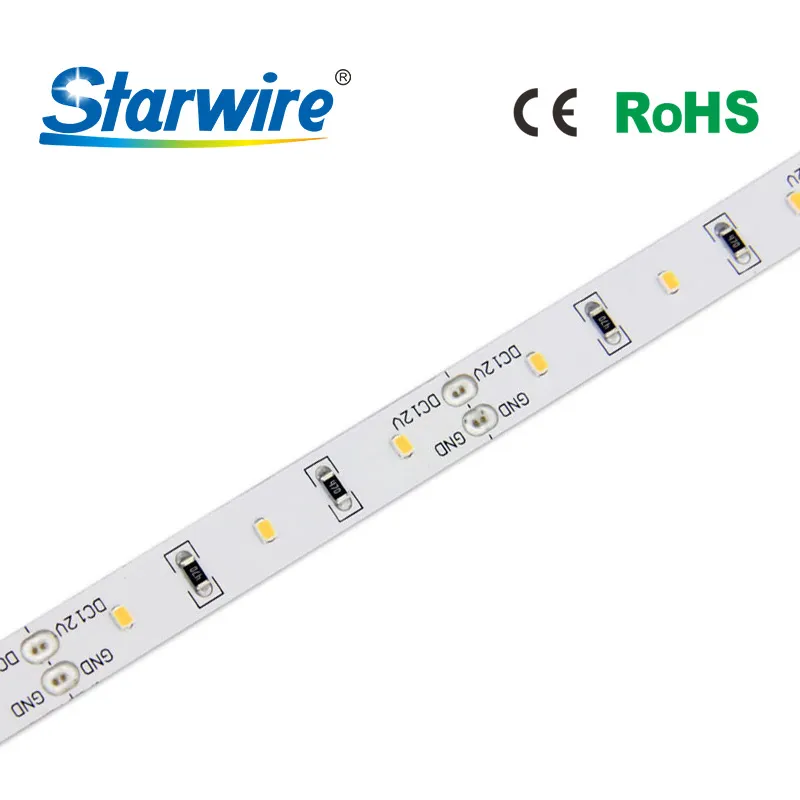

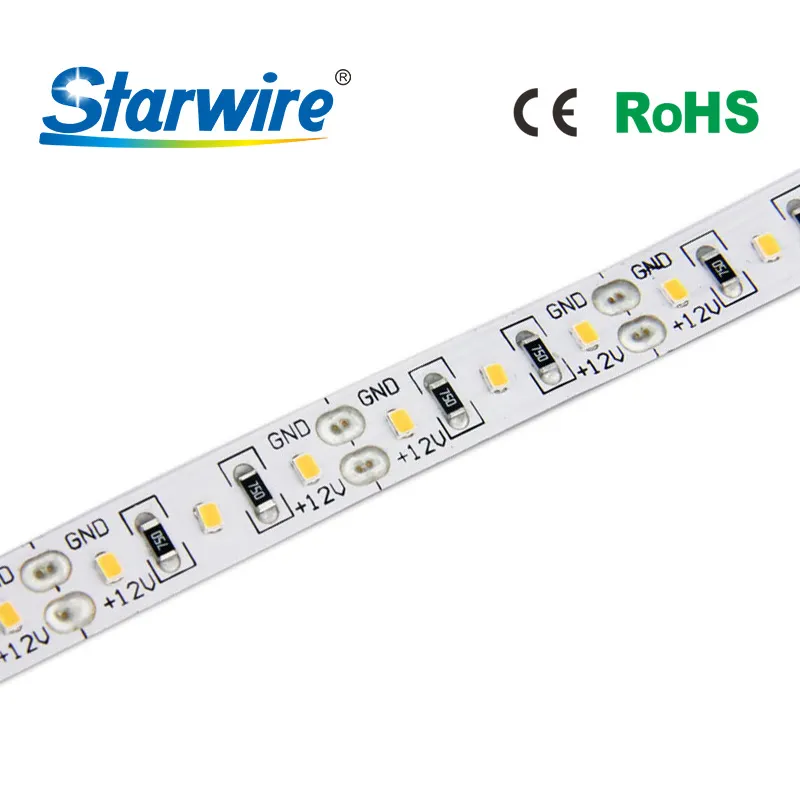

Picture:
2216-120led:5m/roll / SMD2216 / 120pcs/m / 8mm PCB / 10W/m / DC12V & DC24V/735lm/m

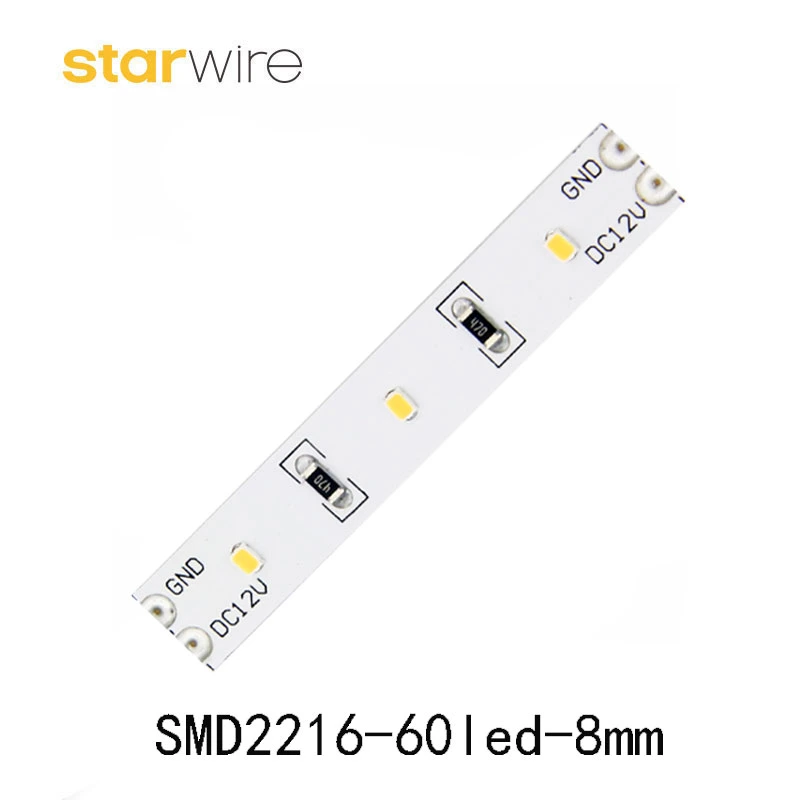

2216-60led:5m/roll / SMD2216 / 60pcs/m / 8mm PCB / 7W/m / DC12V & DC24V/470lm/m
Also,we have 2216-140led:2.5m/roll / SMD2216 / 140pcs/m / 5mm PCB / 8.6W/m / DC24V/705lm/m
2216-210led:2.5m/roll / SMD2216 / 210pcs/m / 5mm PCB / 8.6W/m / DC24V/770lm/m
Strictly color management:
2.) keep color lighting consistence...
2216 Color choices: 2300K:(2250-2325K); 2700K: (2700-2868K); 3000K: (2830-3040K); 4000k: (3900-4258K); 5000k: (4950-5300K); 6000k: (6000-6480K)
Specification
Product Name | SMD2216-60 led | SMD2216-120led |
Led quantity | 60led/m | 120led/m |
CCT | 2200k-6500k | 2200k-6500k |
Lumen | 470 lm/m | 735 lm/m |
Input Voltage | DC12V | DC12v/24V |
Power | 7w/m | 10w/m |
IP Grade | IP20/IP65/IP66 | IP20/IP65/IP66 |
Certification | UL Ce Rohs | UL Ce Rohs |
CRI | >90 | >90 |
PCB Width | 8 mm | 8 mm |
Length | 5m/roll | 3m/roll |

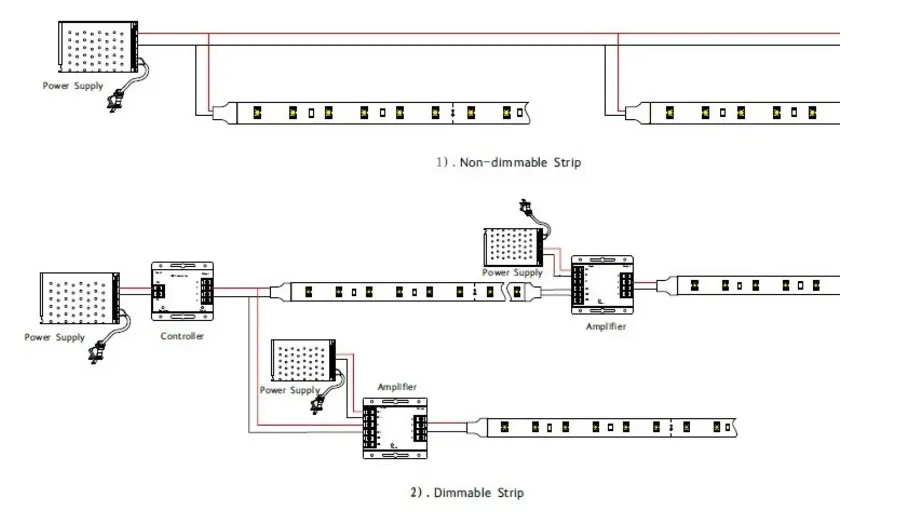

For installation:

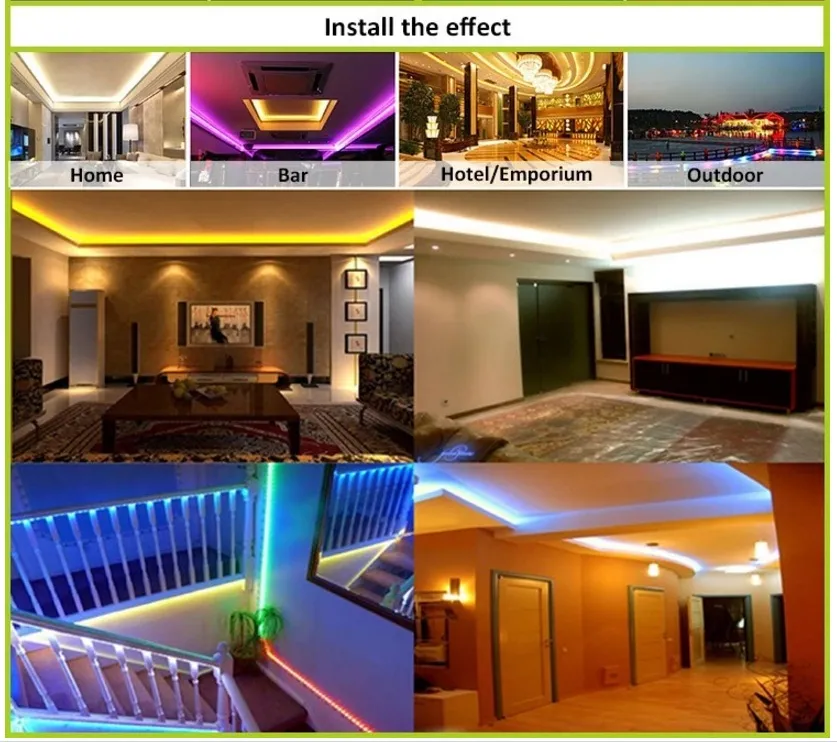

Application:
SMD2216 60LEDs 120LEDs 10W/M LED Light Strips with UL
Starwire==Your Reliable & Valuable Partner in China |
1. Professional: 1) We have been working on LED Strip Lights for more than 5 years; 2) Various Design=OEM Strip VS Aluminum profile Available; 3) Supply led strip, led profile, led controller, connector wire, led driver, DMX, etc. |

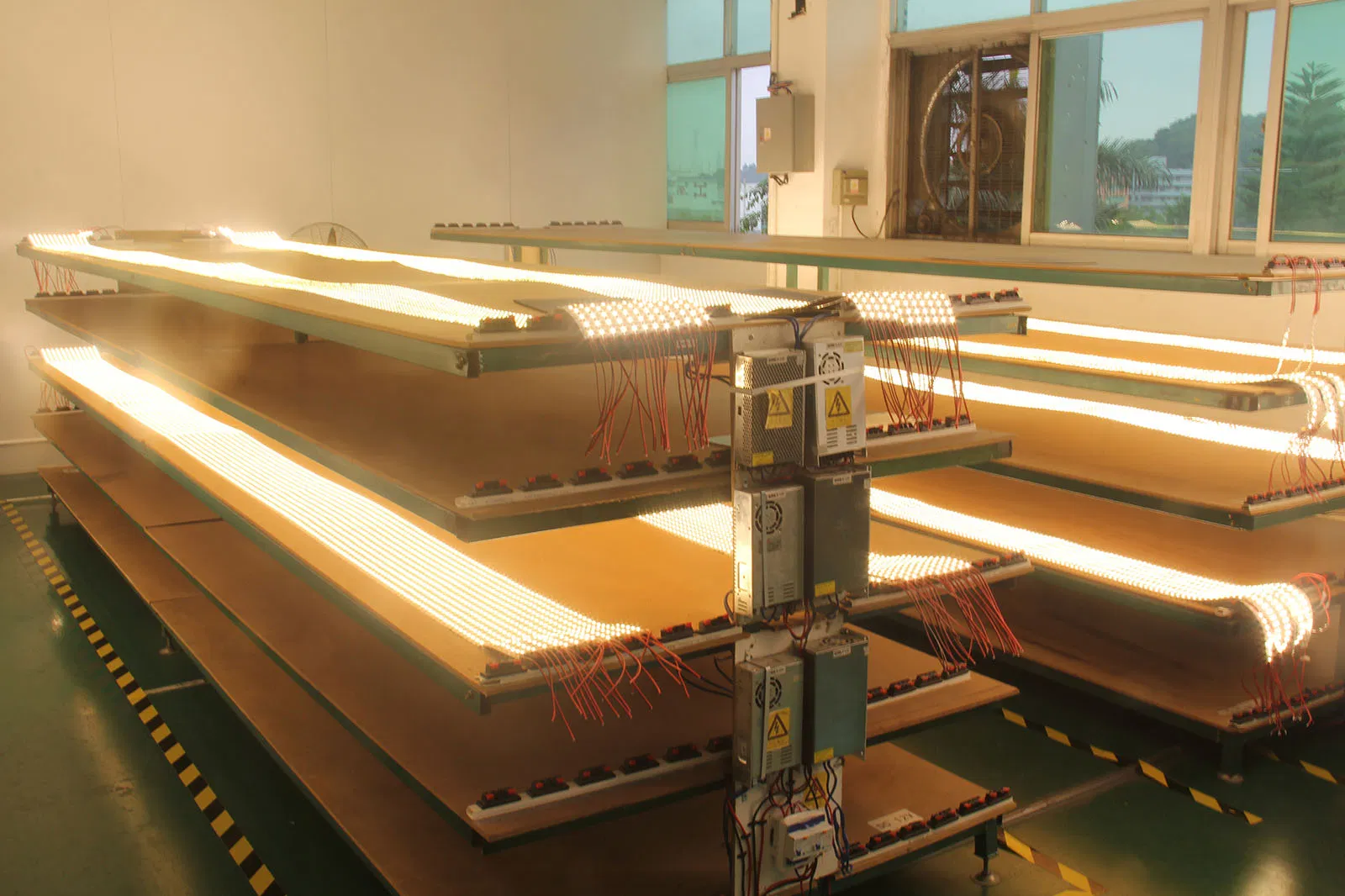

2. Quality: 1) All the products will go through 7 checks during production, And the finished products with 48 hours Aging-test; 2) EU/Chinese Design Patent + CE/RoHS Approved + UL is pending; 3) Warranty: 2 years stadandrd period, 3 years for special request. |
3. Service 2) Reply within 6 hours; |
4. Sample Required: Available from Stock & Fast Delivery! |
Package:

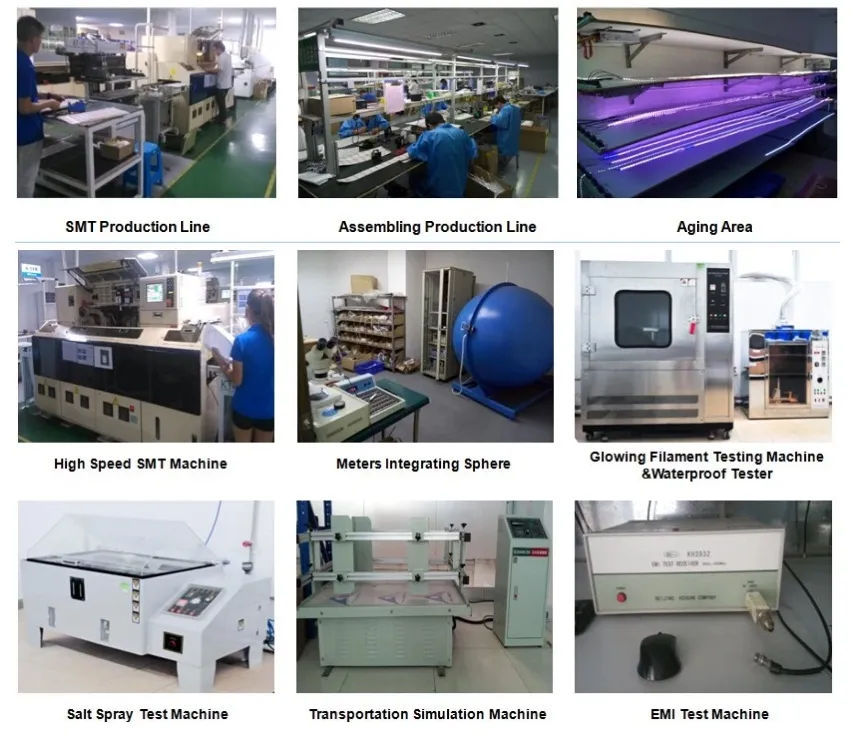

Information of our company:
Shenzhen Starwire Lighting Co., Limited was set up in 2009. Now we focus on two products: LED
Strip Light & LED Downlight . We have two product department specializes in these two categories
of products. Our annual turnover is 10 million US dollars. Now we have 3600 square merer factory
and over 140 workers. We have goniophotometer, intergrating sphere, Humidity Chamber and other
testing equipment.
STARWIRE is a company combing R&D, produce sales together, our factory obtained SGS,
BV certifactions, and out products have passed UL, CE, RoHS, TUV, SAA cetification, our products
are selling well in Europe, North America, Australia and other countries.
We love product, not aggressive, not convergence, but strive to do a small but beautiful factory.
Exhibition:
2,2018 HK Lighting Fair . Booth number:5B-B05,Date:27-30TH,October.
