Top5 LED strip manufacture 2835 flexible LED stripe light with Ce&RoHS
Top5 LED strip manufacture 2835 flexible LED stripe light with Ce&RoHSProduct Specification: Model NOLM2835-WN120-12V-8MMProduct NameSMD2835 120LEDS/M LED stripsPCB Width8MMLED Qty/m120leds/m 2835PCB materials2Oz Double-sided coated pure copperVoltage(V)12V DCRated Power(W)15W/M, 75W/5MLuminous(......
Send Inquiry
Product Description
Product Specification:
| Model NO | LM2835-WN120-12V-8MM |
| Product Name | SMD2835 120LEDS/M LED strips |
| PCB Width | 8MM |
| LED Qty/m | 120leds/m 2835 |
| PCB materials | 2Oz Double-sided coated pure copper |
| Voltage(V) | 12V DC |
| Rated Power(W) | 15W/M, 75W/5M |
| Luminous(lm/m) | 1350lm/m |
| LED Chip Brand | Sanan(Epistar optional) |
| LEDs material | packaged by 99.99% pure gold wire |
| LED BINs | 3-Step/5-Step, same BIN for each order |
| LEDs Supplier | Honglitronic (Osram/Samsung optional) |
| CRI(RA>) | CRI80(CRI 90 optional) |
| Color | W/WW/CW/R/G/B/Y/O/UV/Pink |
| Color Tempertature | 2200K,2700K,3000K,3500K,4000K,6000K,7000K |
| IP Rate | IP20 (IP54/IP67/IP68 optional) |
| View Angle | 120 |
| Product Size(mm) | 8*5000mm |
| Package(m/rol) | 5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available) |
| Working Temperature(ºC) | -20-60 |
| Cutting Unit | 3 LEDs |
| Adhesive Tape | 9495 3000LSE 3M tape |
| Dimmable | Yes |
| Certificate | UL,CE,Rohs,FCC. |
| Warranty | 3 Years |

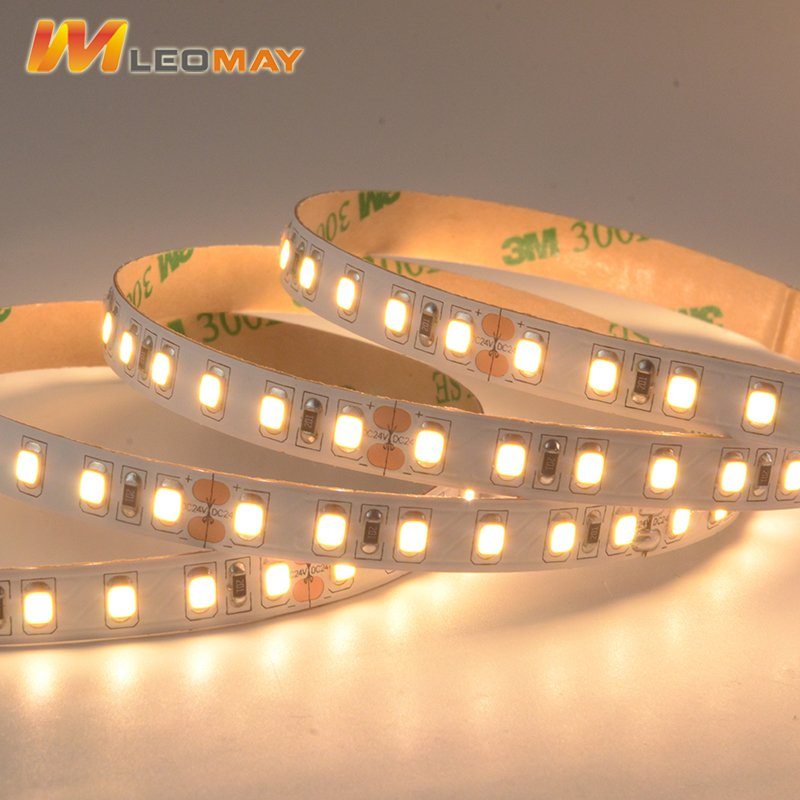

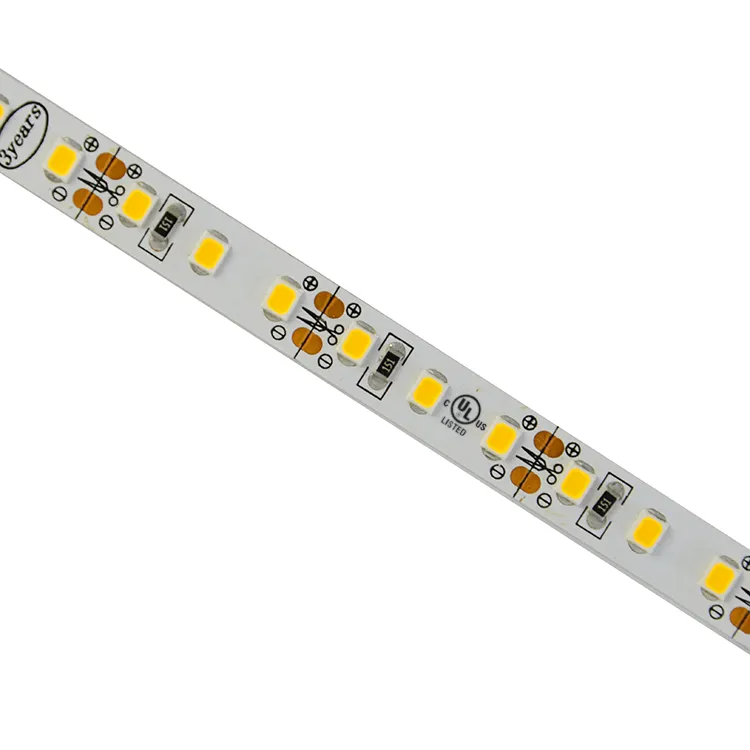

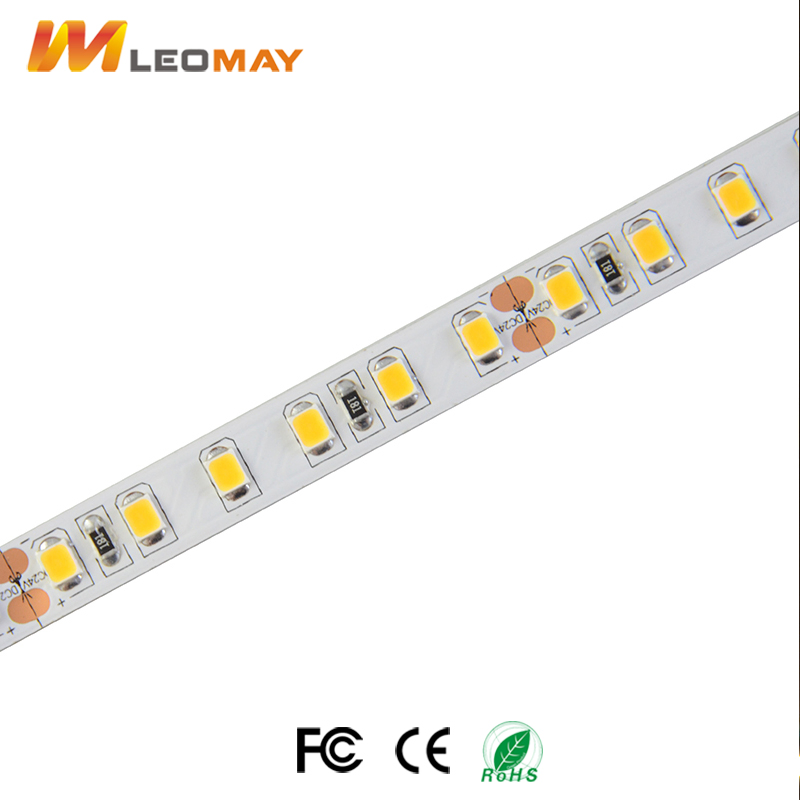

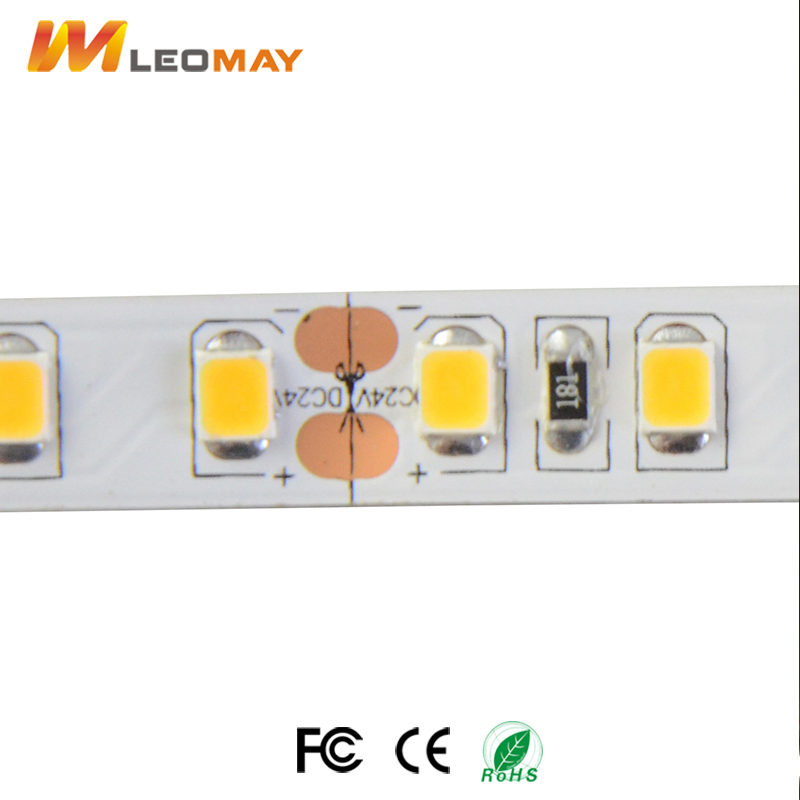

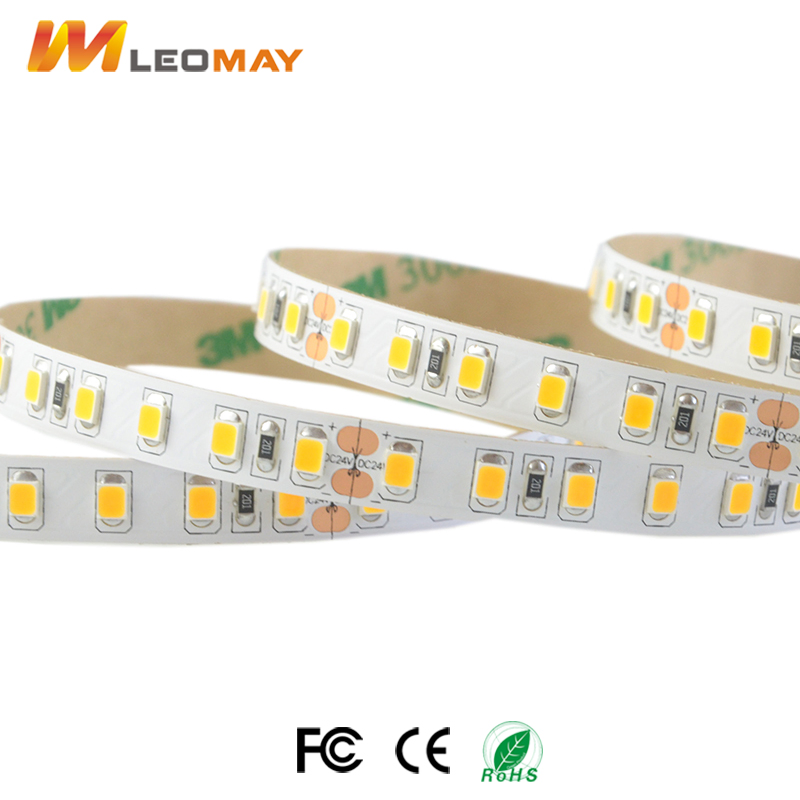

Details Images

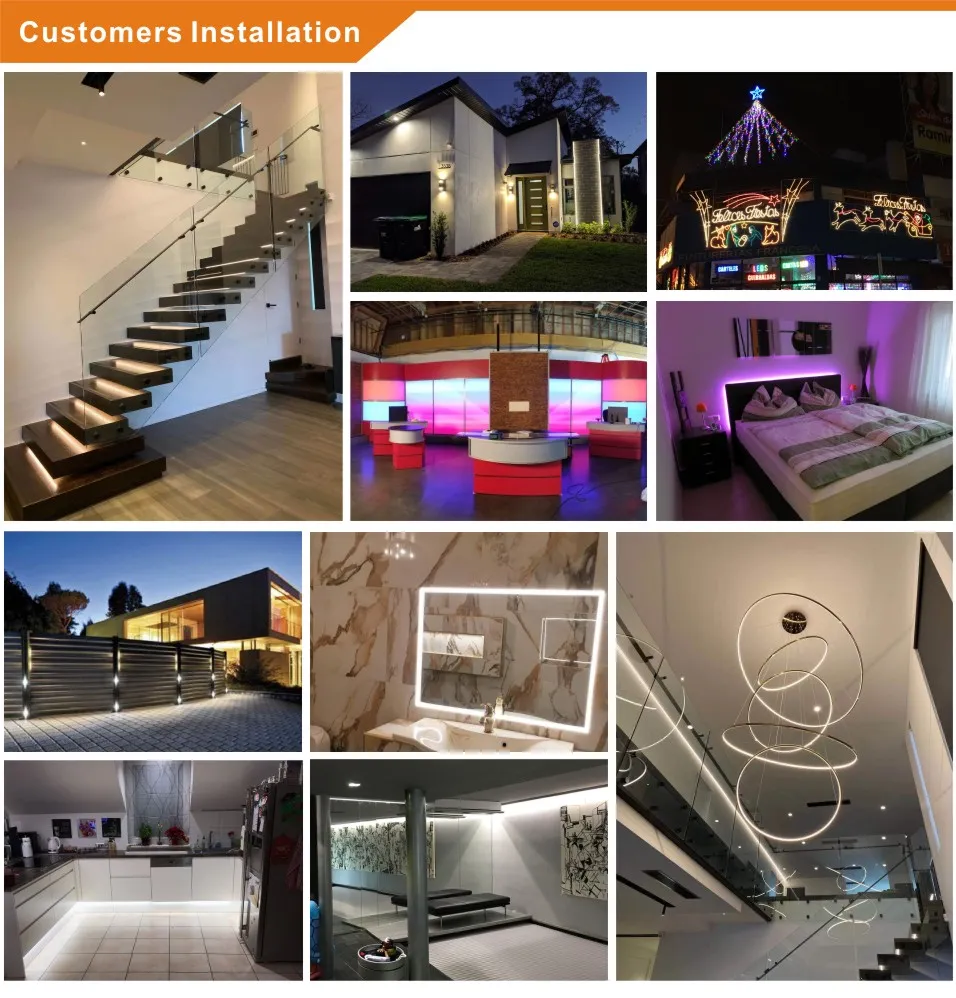

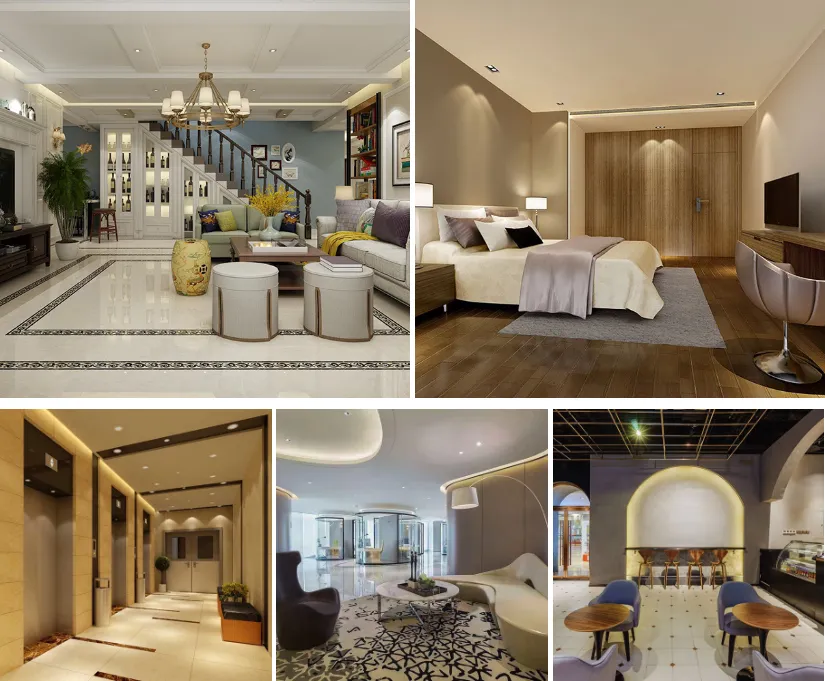

Application
This product can be used for :
1.Decorate shopping mall, super market
2.Club, store, hotel, restaurant, school, library, art gallery, museum
3.Office building
4.Window display lighting, mirror decoration, large scale backlight
5.Indoor and outdoor lighting and for festival decoration
Our Services
1. We can help all our customer in installing, design, and accessory free.
2. Our all customer know: our connector, install clips, wires, is free with orders.
3. Any questions when using , we always fast reply with the professional methods.
4. The shipping from us, very fast, because when we know the normal products you often ordered. We will do stock produce.
5. We are very honest and careful factory direct sell the products. So all products is tested very good and packing very strong.
6. We are will be your most professional and cheapest, fastest supplier.
Packing & Delivery
Packing
- LED Strip Normal Length: 5meters/roll, in a anti-static bag.
- Our Box Size for 80rolls 10MM width Led strip and 12MM width
- Size:46CM*35CM*25CM
- 50Rolls led strip in 1 Box
- weight: 10.5±0.5KG/BOX
Delivery
We mainly ship by DHL, International Express and others according to customer's requirement.
Recommend Products
Company Profile
Our Advantages

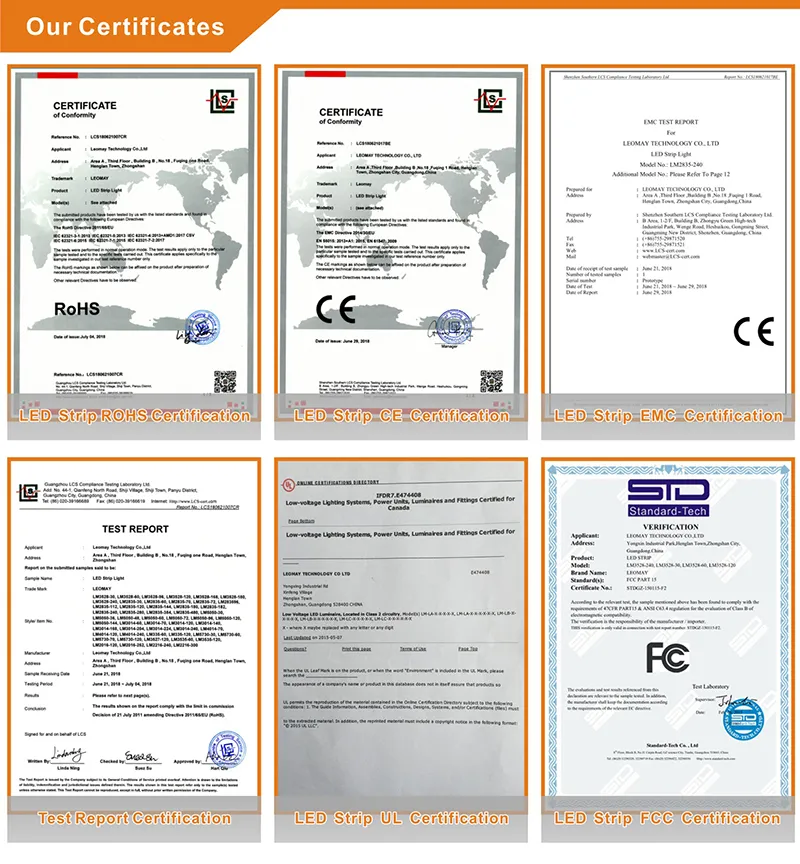

1. UL,FCC,CE,RoHS,CCC,TUV,VDE,CUL certificate.
2. Reliable SMD Source, Epistar. Super brightness, high CRI, ideal for restaurant and super market, make everything looks more real.
3. Operating low voltage (DC12V, DC24V) for human safety.
4. Energy saving and environmental conservation, long lifespan.
