V Corner LED Aluminium Profile Linear Light for LED Strip Light Cabinet Light

Product Description

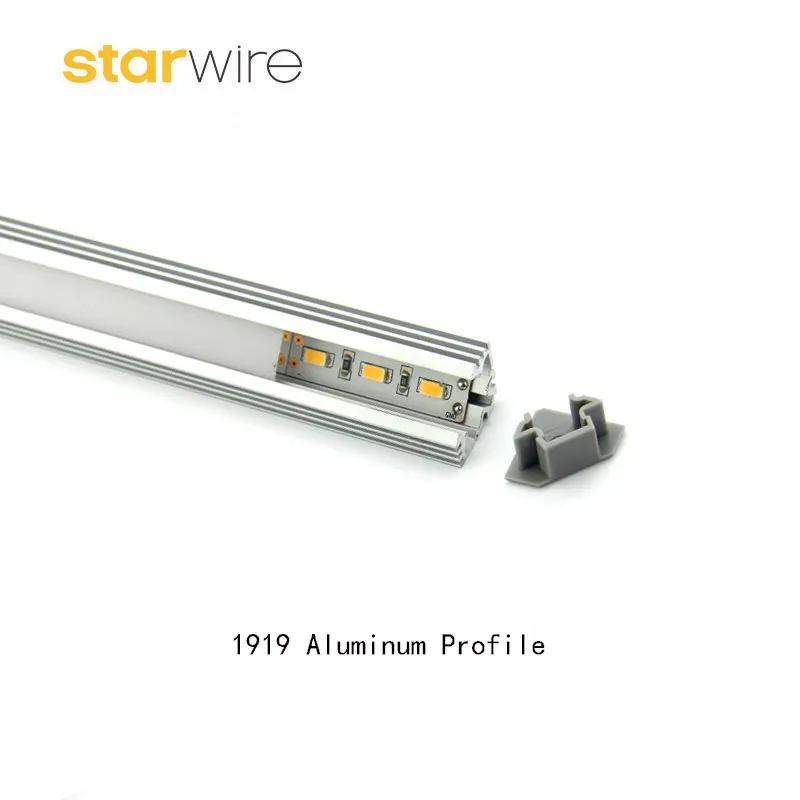

Custom led light 1m V slot 1616 1919 Triangle Aluminum Profile Wardrobe Kitchen Cabinet le linear light

Product Description:

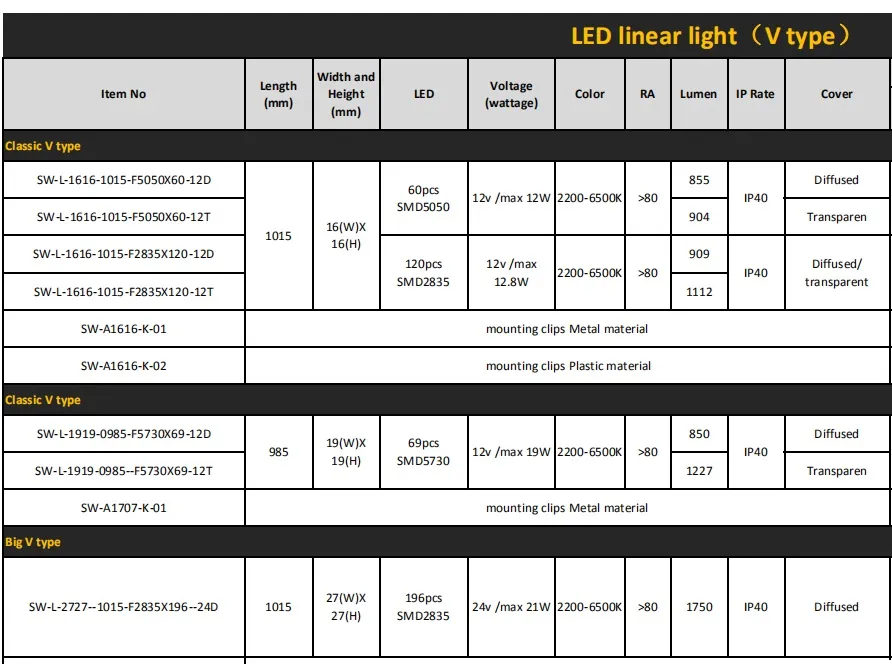

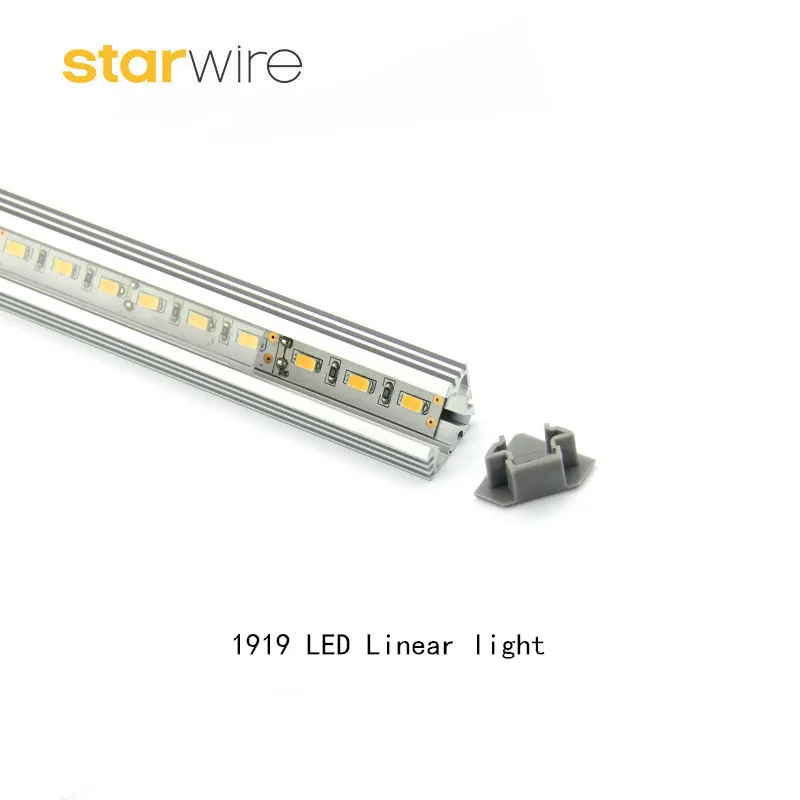

Model No.		SW-1919B led linear light
Size		W19mm * H19 mm
Available lengths		1m	2m	3m
Material	Main Body	Aluminium
	Cover	PC
	End Cap	PP
	Mounting Clips	Steel
Watta		19 w/m
SMD		5730 LED with 10MM width led strip
Cover Type		Transparent/diffused/milky white
Voltage		12v/24v
RA		>80
Operating Temperature		-30°C~60°C(-22°F~140°F)
Flammability		V2 Fire Rating for PC Cover
UV stability		Ageing resistance
Heat stability		Under 100°C
UL94 Rating		UL94V2
Grade of aluminum		Anodized 6063-T5
Heat transmission properties		Aluminum specific heat is 0.88x10J/(Kgx°C)
Suggested Light source		8-12mm wide PCB flexible LED strip

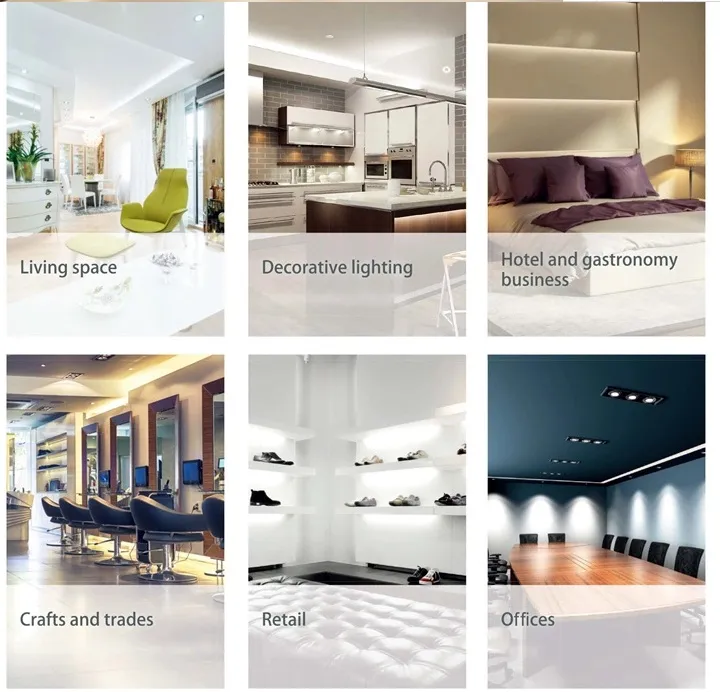

Application:

More information about starwire aluminum profile:

Aluminum LED Profile Material introduction:

1 6063-T5 national standard aluminum profile.

2 the aluminum is thermal - barrier strip.

3 Standard lengths : 0.5m, 1.0m, 1.5m, 2.0m, 2.5m, 3.0m. Other customized lengths also is acceptable.

4 Pecycle material ,it in favor of protect environment.

___________________________________________________________________________________

Aluminum LED Profile Function:

- Furniture production (kitchen / office)

- For flexible or hard LED strips

- Interior light design (stairs / storage / floor)

- Stores shelf LED lighting

- Independent LED lamp

- Exhibition boot LED lighting

- Heat sink and physical protection to the LED

Company Information

Shenzhen Starwire Lighting Co., Limited was set up in 2009. Now we focus on two products: LED Strip Light & LED Downlight&Aluminum profile&Led linear light .

We have two product department specializes in these two categories of products. Our annual turnover is 10 million US dollars. Now we have a 5200 square meter factory and over 150 workers.

We starwire is a company combing R&D, produce sales together, our factory obtained SGS,BV certifications, and our products have passed UL, CE, RoHS, TUV, SAA certification, our products are selling well in Europe, North America, Australia and other countries.

We love products, not aggressive, not convergence, but strive to do a smart but powerful factory.

FAQ

1 Do you offer free sample ?

Yes, we offer free sample based on a limited amount

2 Do you have MOQ ?

NO, 1 piece is always welcome.

3 What is the main market for Starwire?
our products have passed UL, CE, RoHS, TUV, SAA certification, are selling well in Europe, North America, Australia.

We also welcome customer partners in other regions.

4 What LEDs do you usually use for your LED products?
We have 2 levels of LEDs. One is brand LED like SAMSUNG, NICHIA, BRIDGELUX, LUMILEDS, etc.

The other is China brand with Epistar or Sanan chip, which all with LM-80 report.

5 What is Starwire lead time?
Usually 3-5 days for sample, 10-20 days for bulk.

For OEM/ODM products, delivery time usually depends on the product requirements.

6 Do you have a warranty for the products?
Yes, we have 3 and 5 years warranty for different kinds of products. During the period, if customers have the approval showing product quality issues and if certified by Starwire engineers, we would request customers to ship back the failure parts and replace new items with the transportation charged being paid by us.

8 Does Starwire design its products?
Yes. We have 15 engineers around led products.

We can give prompt solutions for customer's requirements.

9 How to buy Starwire products?

You can directly click " Contact Supplier " to send us an inquiry, our sales team will get it and respond immediately.
